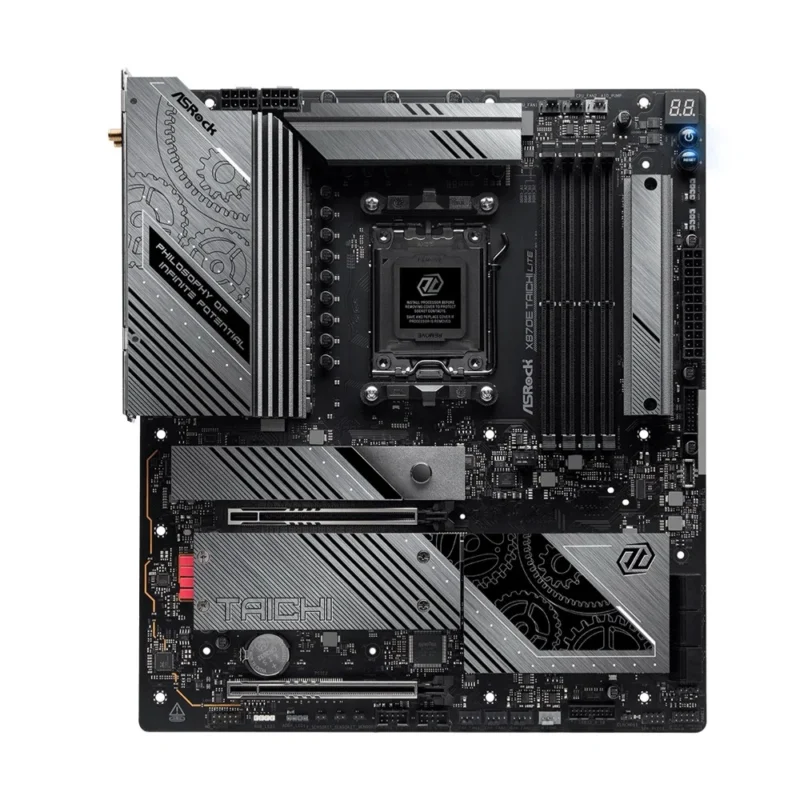

Full layout view of the ASRock X870E Taichi Lite EATX board, showing all expansion slots and heatsink placements.

Angled view of the ASRock X870E Taichi Lite EATX motherboard, showing its massive VRM heatsink armor and dual PCIe 5.0 slots.

The ASRock X870E Taichi Lite motherboard with its streamlined, functionality-focused black and silver design.

Top-down view of the ASRock X870E Taichi Lite, detailing the AM5 socket, four DDR5 slots, and extensive M.2 heatsinks.

A clear shot of the flexible integrated I/O shield on the ASRock X870E Taichi Lite, featuring dual USB4 ports and 5G LAN.

ASRock X870E Taichi Lite WIFI DDR5 AM5 EATX Motherboard

Name: ASRock X870E Taichi Lite | AM5, Dual PCIe 5.0 & Wi-Fi 7
Brand: ASRock
SKU: 90-MXBPA0-A0UAYZ
Price: 8836.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R8836,00

CPU: Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
Socket: AM5
Chipset: AMD X870E
Memory: 4 x DIMM slots | Max. 256GB | DDR5 8200+(OC)
Storage: 4 x M.2 slots | 6 x SATA 6Gb/s ports
Expansion Slots: 2 x PCIe 5.0 x16
Network: 1 x Ethernet 5 Gbps | Wi-Fi 7 (802.11be) & Bluetooth v5.4
Warranty: 3 Years

Availability: 2 in stock SKU: 90-MXBPA0-A0UAYZ Category: AMD Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R220.90 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

ASRock X870E Taichi Lite: Infinite Potential, Streamlined Power

The ASRock X870E Taichi Lite is an enthusiast-grade EATX motherboard designed to deliver the absolute pinnacle of performance in a streamlined, functionality-focused package. Built on the flagship AMD X870E chipset for Ryzen 9000, 8000, and 7000 series processors, the Taichi Lite features an immensely powerful VRM, a complete dual PCIe 5.0 ecosystem, and next-generation connectivity including dual USB4 ports, 5G LAN, and Wi-Fi 7. It’s engineered to fulfill every task with style and infinite potential for overclockers and elite gamers.

Unique Features

24+2+1 Power Phase, 110A SPS: A server-grade power design with Smart Power Stages and massive heatsink armor delivers exceptionally smooth, stable, and cool power to the CPU, enabling unmatched overclocking capabilities and peak performance.
PCIe Gen5 (Graphics, M.2): Experience a true next-generation platform with dual PCIe 5.0 x16 slots for multi-GPU setups and a primary PCIe 5.0 M.2 slot, offering the maximum possible bandwidth for the fastest components available.
USB4 Type-C Ports (40 Gb/s): Dual rear USB4 ports provide lightning-fast 40Gbps data transfer speeds, DisplayPort video output, and versatile connectivity for the most advanced high-speed peripherals and external devices.
5G LAN & Wi-Fi 7 Module: Get the ultimate networking suite with a blazing-fast 5G LAN port for wired connections and next-gen Wi-Fi 7 for the fastest, lowest-latency wireless experience, perfect for competitive gaming and 8K streaming.
Server-Grade Low-Loss PCB: An 8-layer, server-grade PCB with 2oz copper improves signal integrity, providing a rock-solid foundation for extreme memory overclocking and ensuring absolute stability for all PCIe 5.0 components.
ASRock Lightning Gaming Ports: Connect your high-speed mouse and keyboard to dedicated USB ports sourced from separate controllers to minimize jitter and input lag for the most responsive and accurate gaming experience.

Quick Specs of the ASRock X870E Taichi Lite

Specification	Details
CPU Support	Supports AMD Ryzen 9000, 8000 & 7000 Series Processors
Socket	AM5
Chipset	AMD X870E
Memory Support	4 x DDR5 DIMMs \| up to 256GB \| DDR5 8200+(OC)
Storage Options	4 x M.2 slots \| 6 x SATA 6Gb/s ports
Display Ports	1 x HDMI \| 2 x USB4 Type-C
USB Ports	2 x USB4 (Type-C) \| 5 x USB 3.2 Gen2 (Type-A) \| 3 x USB 3.2 Gen1 (Type-A) \| 2 x USB 2.0 (Type-A)
Expansion Slots	2 x PCIe 5.0 x16
LAN	Realtek 5G LAN
Wireless	Wi-Fi 7 (802.11be) \| Bluetooth v5.4
Audio	Realtek ALC4082 Codec with ESS SABRE9219 DAC
Form Factor	EATX (30.5 cm x 26.7 cm)

Check out full specifications under the Specs tab.

Why Choose This Product?

The ASRock X870E Taichi Lite delivers the core features of a flagship motherboard, focusing on raw power and extreme performance. Its massive 24+2+1 phase VRM, dual PCIe 5.0 slots, and a server-grade PCB are built for enthusiasts and overclockers who prioritize stability and record-breaking speeds above all else. This is the ultimate foundation for a PC that makes no compromises on performance.

This board is future-proofed to the extreme with an unparalleled connectivity suite. Featuring dual 40Gbps USB4 ports, blazingly fast 5G LAN, and next-generation Wi-Fi 7, it offers the fastest data transfer and networking speeds available. The premium audio solution, powered by an ESS SABRE DAC and WIMA capacitors, ensures a truly high-fidelity experience, making this a complete package for the ultimate gaming and content creation setup.

Unleash infinite potential and build the ultimate performance machine with the ASRock X870E Taichi Lite.

Unique Feature	Superb Productivity PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability Server-Grade Low-Loss PCB 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor Flexible Integrated I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity 5G LAN, 802.11be Wi-Fi 7 Module ASRock Lightning Gaming Ports EZ Update BIOS Flashback Button ASRock Auto Driver Installer
CPU	Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* Supports ASRock Hyper BCLK Engine *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	AMD X870E
Memory	Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* *Please refer to Memory Support List on ASRock’s website for more information.
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* * Only the CPU’s embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen 9000, 8000 and 7000 processors with embedded graphics.
Audio	5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
LAN	5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Realtek RTL8126
Wireless LAN	802.11be 2×2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO *The Wi-Fi 7 module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
Slots	CPU: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Supports AMD CrossFire™ 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 6 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks. M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB	CPU: 2 x USB4 Type-C (Rear) 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front) 3 x USB 3.2 Gen2 Type-A (Rear) 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Connector	3 x Thermistor Cable Headers 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)* 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI	Software ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables
Form Factor	EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm 8 Layer PCB 2oz Copper PCB
OS	Microsoft Windows 10 64-bit / 11 64-bit

About the Brand

ASRock is a globally recognized brand specializing in high-performance motherboards, industrial PCs, and mini PCs, with a strong focus on innovation and durability. Since its founding in 2002, ASRock has carved a reputation for delivering feature-rich platforms that cater to gamers, professionals, and system builders alike.

Known for pushing boundaries with advanced BIOS control, premium materials, and striking designs, ASRock motherboards are a favorite among enthusiasts seeking reliability and performance. The brand also offers compact and energy-efficient solutions ideal for modern minimalist builds.
