The MSI PRO X870-P WIFI motherboard displayed next to its professional retail box.

Full layout view of the MSI PRO X870-P WIFI ATX board, showing all expansion slots and heatsink placements.

The MSI PRO X870-P WIFI motherboard with its harmonious silver color scheme, ideal for white or black PC builds.

Angled view of the MSI PRO X870-P WIFI ATX motherboard, showing its clean silver and black professional design.

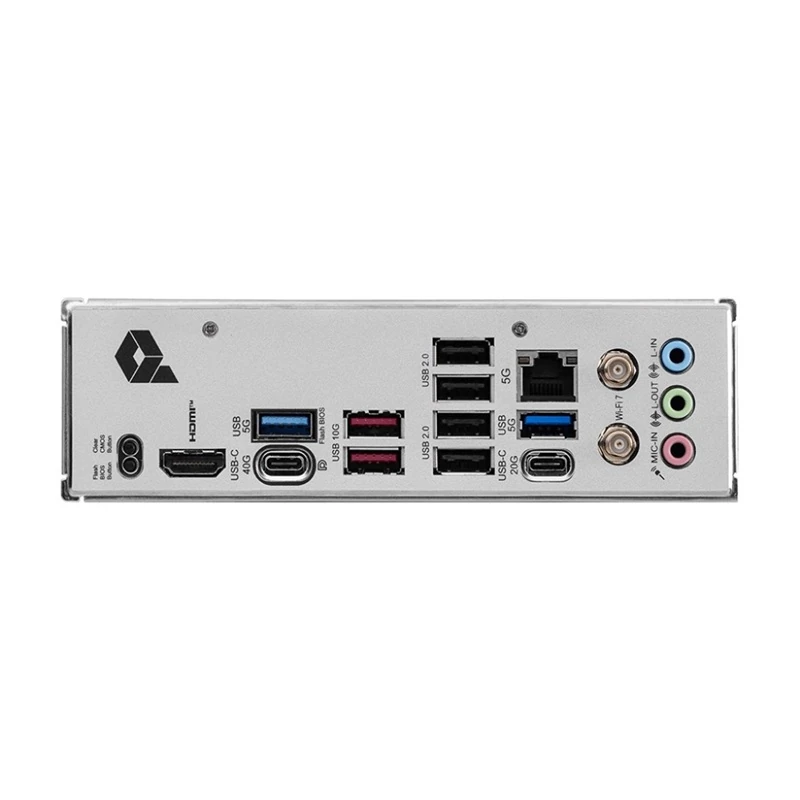

A clear shot of the pre-installed I/O shield, featuring a 40Gbps USB4 port, 5G LAN, and Wi-Fi 7.

MSI PRO X870-P WIFI AM5 ATX DDR5 Motherboard

Name: MSI PRO X870-P WIFI | AM5, PCIe 5.0, USB4 & Wi-Fi 7
Brand: MSI
SKU: 911-7E47-001
Price: 5261.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R5261,00

CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket: AM5
Chipset: AMD X870
Memory: 4 x DIMM slots | Max. 256GB | DDR5 8200+(OC)
Storage: 3 x M.2 slots | 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x16
Network: 1 x Ethernet 5 Gbps | Wi-Fi 7 (802.11be) & Bluetooth v5.4
Warranty: 3 Years

Availability: 1 in stock SKU: 911-7E47-001 Category: AMD Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R131.53 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

MSI PRO X870-P WIFI: Professional Power, Engineered for Efficiency

The MSI PRO X870-P WIFI is a high-performance ATX motherboard tailored for professionals, creators, and power users. It combines a sleek, business-elegant design with a powerful feature set for AMD Ryzen 9000, 8000, and 7000 series processors. Featuring a robust 14+2+1 power design, a complete PCIe 5.0 ecosystem for graphics and storage, and next-generation connectivity like USB4, 5G LAN, and Wi-Fi 7, it provides an incredible experience for multitasking, content creation, and maximizing productivity.

Unique Features

14+2+1 DRPS Power Design: A flagship VRM design with 60A Smart Power Stages and an extended heatsink ensures sustained maximum performance by delivering clean and stable power to high-end AMD processors.
Lightning Gen 5: The latest PCIe 5.0 standard for both the primary x16 slot and M.2 slot provides up to 128GB/s of bandwidth, ensuring maximum, unbottlenecked performance from next-gen graphics cards and SSDs.
Lightning USB 40G: A built-in rear USB4 port offers a lightning-fast 40Gbps transmission speed and display output, providing versatile and ultra-fast connectivity for high-end creative peripherals and storage devices.
5G Network Solution & Wi-Fi 7: A premium networking combination of 5G LAN and the latest Wi-Fi 7 standard delivers the fastest and most stable wired and wireless connections for demanding business use, large file transfers, and smooth video conferencing.
EZ DIY Features: A full suite of innovations including the new EZ PCIe Clip II and tool-less EZ M.2 Shield Frozr II makes building, upgrading, and maintaining your high-performance workstation easier and more efficient than ever.
Frozr AI Cooling: MSI’s intelligent cooling system automatically detects CPU and GPU temperatures and adjusts system fan duty accordingly, ensuring your workstation stays cool and quiet under any workload.

Quick Specs of the MSI PRO X870-P WIFI

Specification	Details
CPU Support	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket	AM5
Chipset	AMD X870
Memory Support	4 x DDR5 DIMMs \| up to 256GB \| DDR5 8200+(OC)
Storage Options	3 x M.2 slots \| 4 x SATA 6Gb/s ports
Display Ports	1 x HDMI \| 1 x USB4 Type-C (DisplayPort)
USB Ports	1 x USB4 (40Gbps Type-C) \| 1 x USB 20Gbps (Type-C) \| 2 x USB 10Gbps (Type-A) \| 2 x USB 5Gbps (Type-A) \| 4 x USB 2.0 (Type-A)
Expansion Slots	1 x PCIe 5.0 x16 \| 1 x PCIe 4.0 x16 \| 2 x PCIe 3.0 x16
LAN	Realtek 5G LAN
Wireless	Wi-Fi 7 (802.11be) \| Bluetooth v5.4
Audio	Realtek ALC897
Form Factor	ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The MSI PRO X870-P WIFI is engineered for professionals who demand efficiency and reliability. Its robust 14+2+1 power design, 8-layer server-grade PCB, and comprehensive cooling ensure rock-solid stability for intensive multitasking and demanding applications. The full PCIe 5.0 ecosystem for both graphics and storage means you’re investing in a high-performance platform that is ready for the fastest professional-grade components of today and tomorrow.

This motherboard is built to accelerate your entire workflow with a complete suite of next-generation I/O. A 40Gbps USB4 port, 5G LAN, and Wi-Fi 7 provide unparalleled speed for transferring large project files and maintaining seamless network connectivity. Furthermore, MSI’s exclusive EZ DIY features make system assembly and maintenance a breeze, saving valuable time and effort so you can focus on your work.

Boost your productivity and build a powerful, efficient workstation with the MSI PRO X870-P WIFI.

Chipset	AMD X870
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List on the product’s Support page.
Onboard Graphics	1x HDMI, Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort, USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot CPU Dependency: Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Storage	3x M.2 Slots M.2_1 (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G Ports M2_1 slot CPU Dependency: Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices* SATA_A1~A4 do not support RAID function. RAID 5 configuration is only supported by Ryzen 9000 series processors.
USB	1x USB 40Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 4x USB 2.0 (Rear) 4x USB 2.0 (Front)
LAN	Realtek 8126VB 5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Clear CMOS Button Flash BIOS Button HDMI 1x USB 40Gbps Type-C 1x USB 20Gbps Type-C 2x USB 10Gbps Type-A 2x USB 5Gbps Type-A 4x USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors
OPERATING SYSTEM	Support for Windows 11 64-bit
Form Factor	ATX
