GIGABYTE UD750GM PG5 750W 80 Plus Gold (ATX 3.0/PCIe 5.0) Fully-Modular ATX Power Supply
R1689,00
- Wattage: 750W
- Efficiency: 80 PLUS Gold
- Modularity: Fully-Modular
- Form Factor: ATX
- Next-Gen Ready: ATX 3.0 & PCIe 5.0
- Warranty: 5 Years
Secure Payments via Bob Pay
Visa
Mastercard
Amex
Scan to Pay
PayShap
Banking Apps
Save 2.5% paying via EFT — you save R42.23 on this order
- Description
- SPECS
- Brand
- Reviews (0)
Description

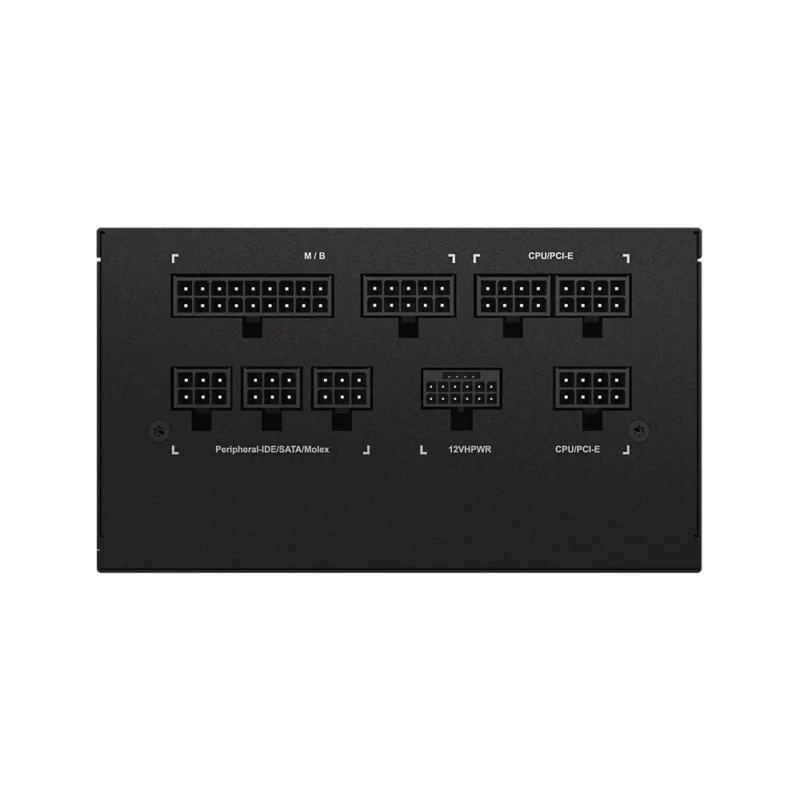

GIGABYTE UD750GM PG5: Compact ATX 3.0 Power for Next-Gen Gaming
The GIGABYTE UD750GM PG5 is a compact, ATX 3.0 ready power supply designed for modern gaming systems. It delivers 750 watts of stable, 80 PLUS Gold certified power and includes a native 16-pin PCIe 5.0 connector to support the latest graphics cards. Built with GIGABYTE’s Ultra Durable philosophy, the GIGABYTE UD750GM PG5 combines high-quality Japanese capacitors, an enhanced thermal solution, and a quiet smart fan to ensure long-lasting, reliable performance.
Unique Features
- ATX 3.0 & PCIe 5.0 Support: Fully compatible with the Intel ATX 3.0 standard and includes a native 16-pin (12VHPWR) cable to deliver up to 450W to the latest graphics cards.
- Ultra Durable Design: Features high-quality main Japanese capacitors and an enhanced thermal solution with an enlarged heatsink for superior longevity and stability.
- 120mm Smart HYB Fan: A smart hydraulic bearing fan provides quiet operation, stopping completely under low loads (less than 20%) for a silent desktop experience.
- Compact 140mm Design: The reduced length allows for easy installation in a wide variety of chassis, including compact cases, without space constraints.
Quick Specs: GIGABYTE UD750GM PG5
| Specification | Details |
|---|---|
| Form Factor | ATX |
| Power Output | 750W |
| Energy Efficiency | 80 PLUS Gold |
| Modular | Fully-Modular |
| Cooling | 120mm Hydraulic Bearing (HYB) Fan (Zero RPM Mode) |
| Connections |
|
| Series | Ultra Durable (UD) |
| Warranty | 5 Years |
Check out full specifications under the Specs tab.
Power-Up Reminder
This PSU is sold without a power cord. Add one to complete your setup.
Why Choose This Product?
The GIGABYTE UD750GM PG5 is the perfect choice for gamers and builders creating a modern, high-performance PC. Its future-proof design ensures you’re ready for the latest hardware, while the Ultra Durable components guarantee a long and stable lifespan. The fully modular design and compact size make it incredibly easy to build with, resulting in a clean and efficient system.
Power your next-gen build with confidence!
| I. Overview | |
|---|---|
| Model Name | GP-UD750GM PG5 |
| Form Factor | ATX |
| Power Output (Wattage) | 750W |
| 80 PLUS Certification | Gold |
| Modularity | Fully-Modular |
| Fan Size(s) | 120mm |
| Fan Bearing Technology | Hydraulic Bearing (HYB) |
| Mean Time Between Failures (MTBF) | >100,000 hours |
| Color | Black |
| Warranty Period | 5 Years |
| II. Power Specifications | |
| Input Voltage Range | 100V-240V (Input Current: 12-6A, Frequency: 60-50Hz) |
| +3.3V Output (Amps) | 20A (Combined Max Output with +5V: 105W) |
| +5V Output (Amps) | 20A (Combined Max Output with +3.3V: 105W) |
| +12V Output (Amps & Rail Configuration if specified) | 62.5A (Max Output: 750W) (Single Rail) |
| -12V Output (Amps) | 0.3A (Max Output: 3.6W) |
| +5Vsb Output (Amps) | 3A (Max Output: 15W) |
| Power Protection Features |
|
| III. Connectors | |
| Motherboard Power Connector (20+4 pin) | 1 |
| CPU Power Connector (4+4 pin) | 2 |
| PCIe Graphics Connector (6+2 pin) | 4 |
| High-Power PCIe Graphics Connector (12VHPWR) | 1 (450W) |
| SATA Power Connectors | 8 |
| Peripheral Power Connectors (Molex) | 3 |
| Floppy Drive Connector (FDD 4-pin) | 1 |
| IV. Other Notable Features | |
| Other Notable Features |
|
