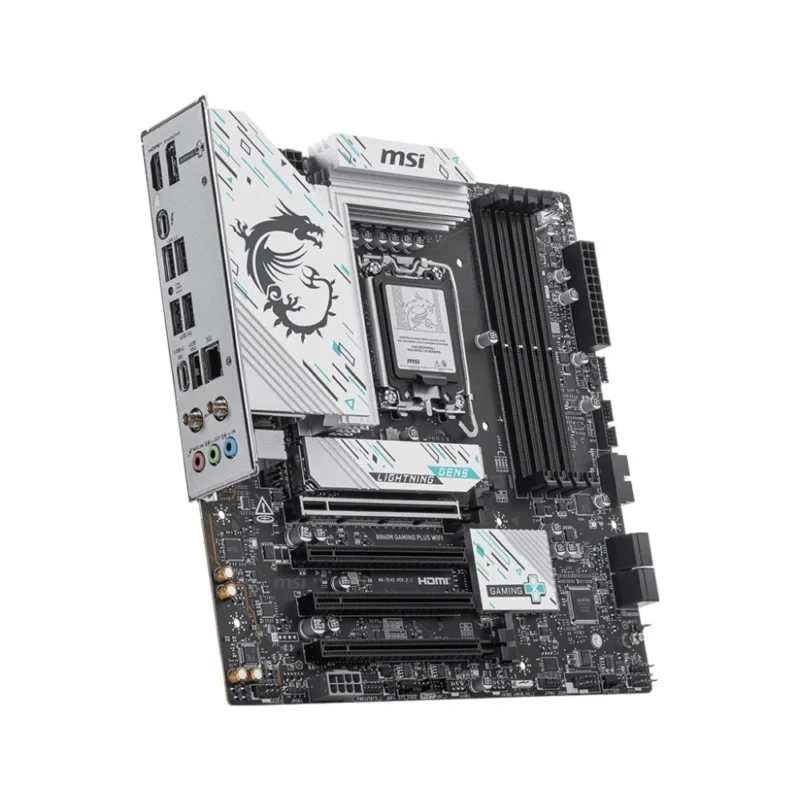

Angled view of the MSI B860M GAMING PLUS WIFI motherboard showing the silver heatsinks and black PCB.

Top-down view of the MSI B860M GAMING PLUS WIFI Micro ATX board with LGA 1851 socket.

Rear I/O panel of the MSI B860M GAMING PLUS WIFI featuring Thunderbolt 4 and 5G LAN ports.

MSI B860M GAMING PLUS WIFI DDR5 LGA1851 Micro ATX Motherboard

Name: MSI B860M GAMING PLUS WIFI | Thunderbolt 4 Motherboard
Brand: MSI
SKU: 911-7E42-003
Price: 3752.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R3752,00

CPU: Supports Intel Core Ultra Processors (Series 2)
Socket: LGA 1851
Chipset: Intel B860
Memory: 4 x DIMM slots | Max. 256GB | DDR5 8800+ MT/s (OC)
Storage: 3 x M.2 slots | 4 x SATA 6G ports
Expansion Slots: 1 x PCIe 5.0 x16 | 3 x PCIe 4.0 x16
Network: 1 x Intel Killer 5Gbps LAN | Wi-Fi 7 (802.11be) & Bluetooth 5.4
Warranty: 3 Years

Availability: 3 in stock SKU: 911-7E42-003 Category: Intel Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R93.80 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

MSI B860M GAMING PLUS WIFI: Ultra-Fast Connectivity for Gamers

The MSI B860M GAMING PLUS WIFI is a Micro ATX motherboard designed to extract the full potential of Intel Core Ultra Processors (Series 2). Crafted for gamers and creators who demand extensive connectivity, it features a robust 12+1+1+1 Duet Rail Power System and server-grade PCB materials to ensure system stability under heavy loads. With support for the latest DDR5 memory speeds up to 8800+ MT/s and a suite of exclusive EZ DIY features, this board offers a premium, user-friendly building experience.

Unique Features

Thunderbolt 4 Connectivity: Features a rear Thunderbolt 4 port supporting true 40Gbps speeds, 8K display output, and daisy-chaining capabilities for multi-port accessory architectures.
Network Supremacy: Equipped with Intel Killer E5000 5G LAN and the latest Wi-Fi 7 solution, delivering transmission speeds up to 5.8Gbps and ultra-low latency for competitive gaming.
Lightning Gen 5: Includes a PCIe 5.0 x16 slot and a Lightning Gen 5 M.2 slot, providing up to 128GB/s bandwidth for the fastest graphics cards and storage devices available.
EZ DIY Design: Simplifies installation with the EZ PCIe Clip II for easy GPU removal, EZ M.2 Shield Frozr II for tool-less SSD installation, and a pre-installed I/O shield.
Supplemental Power: Features an exclusive Supplemental PCIe Power connector to provide dedicated power for high-demand GPUs used in AI computing and gaming.
Frozr Cooling: Comprehensive thermal solution with an extended heatsink, 7W/mK thermal pads, and M.2 Shield Frozr to prevent throttling during intense sessions.

Quick Specs of the MSI B860M GAMING PLUS WIFI

Specification	Details
CPU Support	Intel Core Ultra Processors (Series 2)
Socket	LGA 1851
Chipset	Intel B860
Memory Support	4 x DDR5 DIMMs \| Max. 256GB \| 8800+ MT/s (OC)
Storage Options	3 x M.2 slots (1 x Gen 5) \| 4 x SATA 6G ports
Display Ports	1 x HDMI 2.1 \| 1 x DisplayPort 1.4 \| 1 x Thunderbolt 4 (Type-C)
USB Ports	1 x Thunderbolt 4 \| 2 x USB 10Gbps \| 7 x USB 5Gbps \| 6 x USB 2.0
Expansion Slots	1 x PCIe 5.0 x16 \| 3 x PCIe 4.0 (x1/x1/x4 electrical)
LAN	Intel Killer E5000 5Gbps LAN
Wireless	Intel Killer Wi-Fi 7 \| Bluetooth 5.4
Audio	Realtek ALC897 7.1-Channel HD Audio
Form Factor	Micro ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The MSI B860M GAMING PLUS WIFI is the ideal choice for gamers who refuse to compromise on speed or future-proofing. With the inclusion of Thunderbolt 4, Thunderbolt 5 readiness via header, and Wi-Fi 7, this motherboard ensures you are connected at the highest possible speeds. Its Micro ATX form factor allows for a compact build without sacrificing high-end features like PCIe 5.0 graphics and storage support.

Furthermore, MSI has revolutionized the building process with the EZ DIY 2.0 ecosystem. Features like the EZ PCIe Clip II and magnetic EZ Antenna make assembly and upgrades effortless. [Image of PCIe quick release mechanism diagram] Combined with AI-driven performance optimizations in the BIOS and MSI Centre, this board provides a smart, stable, and powerful foundation for your next-gen Intel rig.

Experience the future of connectivity. Upgrade to the MSI B860M GAMING PLUS WIFI today.

Model Name	B860M GAMING PLUS WIFI
CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851 Socket
Chipset	Intel B860 Chipset
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM * The DIMM slots on this motherboard only have single-sided latches.
Onboard Graphics	1x HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort (Thunderbolt 4), supporting DisplayPort 2.1 with UHBR20, max resolution 4K@120Hz / 8K@60Hz * Available only on processors featuring integrated graphics.
Expansion Slots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280 devices 4x SATA 6G Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt	1x Thunderbolt 4 port (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A, 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices Supports up to 8K display
USB	Rear USB 2x USB 2.0 2x USB 5Gbps Type A 1x USB 5Gbps Type C 1x USB 10Gbps Type A Front USB 4x USB 2.0 4x USB 5Gbps Type A 1x USB 10Gbps Type C
LAN	Intel Killer E5000 5Gbps LAN
Wireless & Bluetooth	Intel Killer BE1750x Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations.
Audio	Realtek ALC897 Codec, 7.1-Channel High Definition Audio
Internal I/O Connectors	1x Thunderbolt 5 card connector (JTBT5) 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x Power Connector (PCIE_PWR 8pin) 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD) 1x Com Port (JCOM), 1x Tuning Controller connector (JDASH) 2x Addressable V2 RGB LED connector, 1x RGB LED connector 1x TPM pin header
Back Panel Ports	DisplayPort HDMI Thunderbolt 4 40Gbps (Type-C) USB 2.0 USB 5Gbps (Type-A & Type-C) USB 10Gbps (Type-A) 5G LAN Wi-Fi / Bluetooth Antenna Audio Connectors Clear CMOS Button
Special Features	EZ DIY EZ PCIe Clip II EZ M.2 Shield Frozr II Pre-installed I/O Shielding EZ Antenna Cooling Frozr AI Cooling Extended Heatsink Design M.2 Shield Frozr
Form Factor	Micro ATX Form Factor
