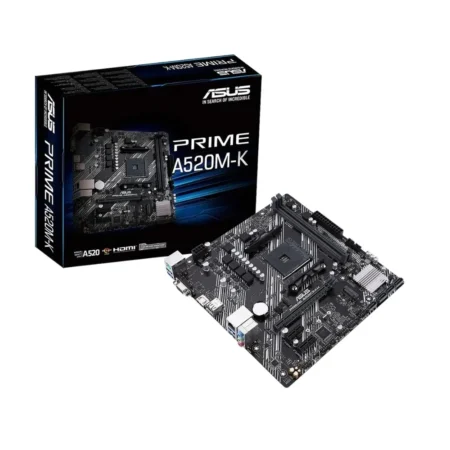

ASUS PRIME A520M-K DDR4 AM4 Micro-ATX Motherboard
R1135,00
- CPU: Supports AMD Ryzen 5000/4000 G/3000 Series Processors
- Socket: AM4
- Chipset: AMD A520
- Memory: 2 x DIMM slots | Max. 64GB | DDR4
- Storage: 1 x M.2 slot | 4 x SATA 6Gb/s ports
- Expansion Slots: 1 x PCIe 3.0 x16
- Network: 1 x Ethernet 1 Gbps
- Warranty: 3 Years
- Description
- SPECS
- Brand
- Reviews (0)
Description
ASUS PRIME A520M-K: Reliable Foundation for Your 3rd Gen AMD Ryzen System
The ASUS PRIME A520M-K is a Micro-ATX motherboard designed to support 3rd Gen AMD Ryzen processors. It provides a dependable and affordable platform for home or office PC builds. With features like ASUS 5X PROTECTION III and comprehensive cooling options, it ensures system stability and longevity.
Unique Features
- ASUS 5X PROTECTION III: Incorporates DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O for all-around system protection.
- ASUS Q-Design: Features Q-DIMM and Q-Slot for easier installation and removal of components.
- ASUS Thermal Solution: Equipped with an aluminium heatsink for efficient heat dissipation.
- Armoury Crate: A software utility designed to give you centralized control of supported products, making it easy to tune the look and feel of your system.
Quick Specs of the ASUS PRIME A520M-K
| Specification | Details |
|---|---|
| CPU Support: | AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors |
| Chipset | AMD A520 |
| Memory Support | 2 x DIMM slots, up to 64GB, DDR4 (up to 4600(O.C.)) |
| Socket | AM4 |
| Storage Options | 1 x M.2 slot | 4 x SATA 6Gb/s ports |
| Display Ports | 1 x D-Sub | 1 x DVI-D | 1 x HDMI |
| USB Ports | 4 x USB 3.2 Gen 1 port(s) (Type-A) | 2 x USB 2.0 port(s) (Type-A) |
| Expansion Slots | 1 x PCIe 3.0 x16 | 2 x PCIe 3.0 x1 |
| LAN | 1 x Realtek 1Gbps Ethernet |
| Wireless | N/A |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC |
| Form Factor | Micro-ATX |
Check out full specifications under the Specs tab.
Why Choose This Product?
The ASUS PRIME A520M-K is a solid choice for those looking to build a reliable and cost-effective system using 3rd Gen AMD Ryzen processors. Its ASUS 5X PROTECTION III features ensure component longevity and system protection. Moreover, the board supports high-speed DDR4 memory and includes an M.2 slot for fast NVMe SSDs.
Therefore, whether you are building a home office PC, or a media center, the PRIME A520M-K offers a great balance of features and value.
Start Your Build Today!
Choose the ASUS PRIME A520M-K for a dependable and efficient foundation for your next AMD-based system. Begin building with confidence!
| Model | PRIME A520M-K |
| CPU | Build in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors Processors *
* Refer to www.asus.com for CPU support list |
| Chipset | AMD A520 |
| Memory |
The maximum memory frequency supported varies by processor. Dual Channel Memory Architecture and ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | 1 x HDMI 2.1(4K@60HZ) |
| Expansion Slots | 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors, AMD A520 Chipse: 2 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x16 mode) |
| Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports, 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors : AMD A520 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN | Realtek RTL8111H 1Gbps Ethernet,ASUS LANGuard |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| USB Ports | Front USB Port ( Total 6 ), 4 x USB 2.0 port(s)(4 x Type-A), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), Rear USB Port ( Total 6 ), 4 x USB 3.2 Gen 1 port(s)(4 x Type-A), 2 x USB 2.0 port(s)(2 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance and Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert – EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS 5X PROTECTION III – ASUS DIGI+ VRM – ASUS LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminium heatsink design |
| Back I/O Ports | 4 x USB 3.2 Gen 1 (blue) Type-A, 1 x D-Sub, 2 x USB 2.0, 3 x Audio jack(s), 1 x PS/2 keyboard/mouse combo port(s), 1 x HDMI, 1 x LAN (RJ45) port(s) |
| Internal I/O Ports | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 1 x 8-pin EATX 12V Power connectors, 1 x COM port header,1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x System panel connector, 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), 4 x SATA 6Gb/s connector(s), 1 x Speaker connector, 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x SPI TPM header,1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s) |

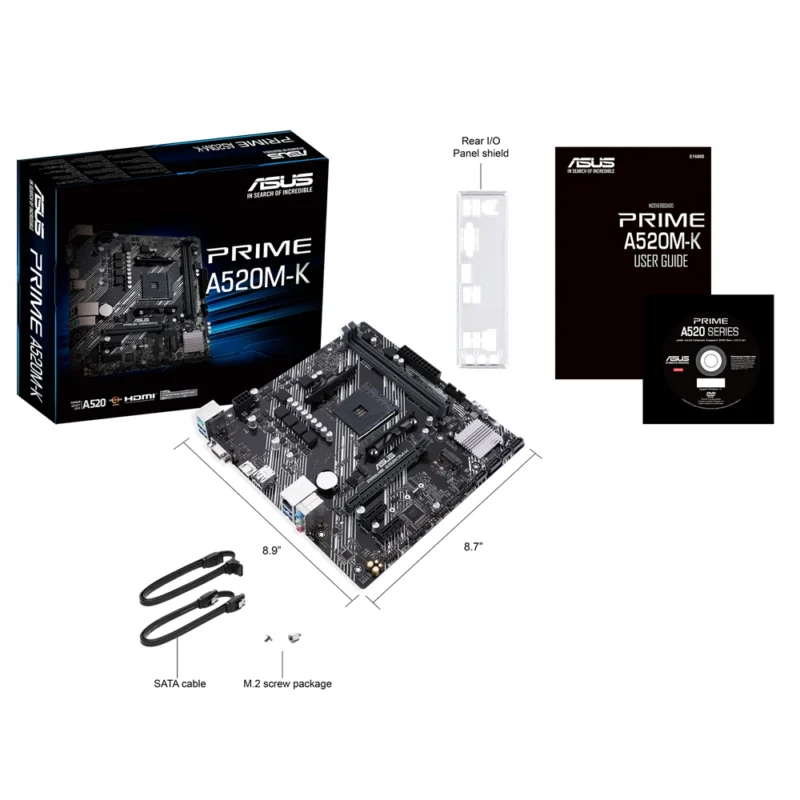

| Accessories | 1 x M.2 SSD screw package(s), User´s manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x Supporting DVD |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | Micro-ATX |
