ASRock B650M-HDV/M.2 DDR5 AM5 Micro ATX Motherboard
R2145,00
- CPU: Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
- Socket: AM5
- Chipset: AMD B650
- Memory: 2 x DIMM slots | Max. 128GB | DDR5 7200+(OC)
- Storage: 2 x M.2 slots | 4 x SATA 6Gb/s ports
- Expansion Slots: 2 x PCIe 4.0 x16
- Network: 1 x Ethernet 2.5 Gbps
- Warranty: 3 Years
- Description
- SPECS
- Brand
- Reviews (0)
Description

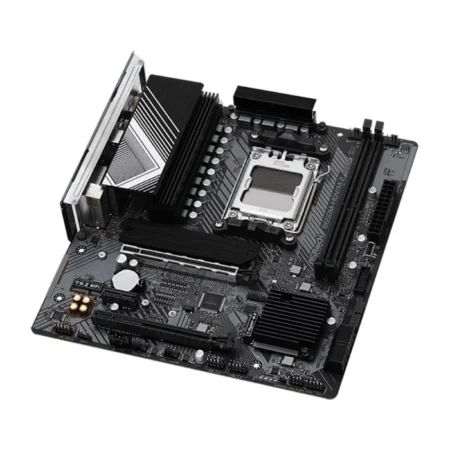

ASRock B650M-HDV/M.2: Compact Powerhouse with Gen 5 Speed
The ASRock B650M-HDV/M.2 is a compact and powerful Micro ATX motherboard designed to deliver superb productivity and gaming performance on the AMD AM5 platform. It expertly packs next-generation features, including a blazing-fast PCIe Gen5 M.2 slot and support for high-speed DDR5 memory, into a versatile package. This makes it the perfect choice for builders who need top-tier performance for the latest AMD Ryzen processors without the size of a full ATX board.
Unique Features
- PCIe Gen5 (M.2): Unleash the fastest storage speeds on the market with a Blazing M.2 slot that supports next-gen PCIe Gen5 SSDs, offering up to 128 Gb/s bandwidth for near-instant game loading and file transfers.
- 8+2+1 Power Phase, 50A Dr.MOS: A rock-solid power design ensures stable and efficient power delivery to the latest AMD Ryzen processors, providing a reliable foundation for sustained performance and overclocking potential.
- 2.5G LAN: The Dragon 2.5G LAN port delivers ultrafast networking performance with intelligent software that prioritizes traffic, providing a low-latency connection optimized for competitive online gaming and high-quality streaming.
- Dual Channel DDR5: Supports the latest high-speed DDR5 memory up to 7200+(OC), providing a massive boost in bandwidth and performance for demanding applications and multitasking.

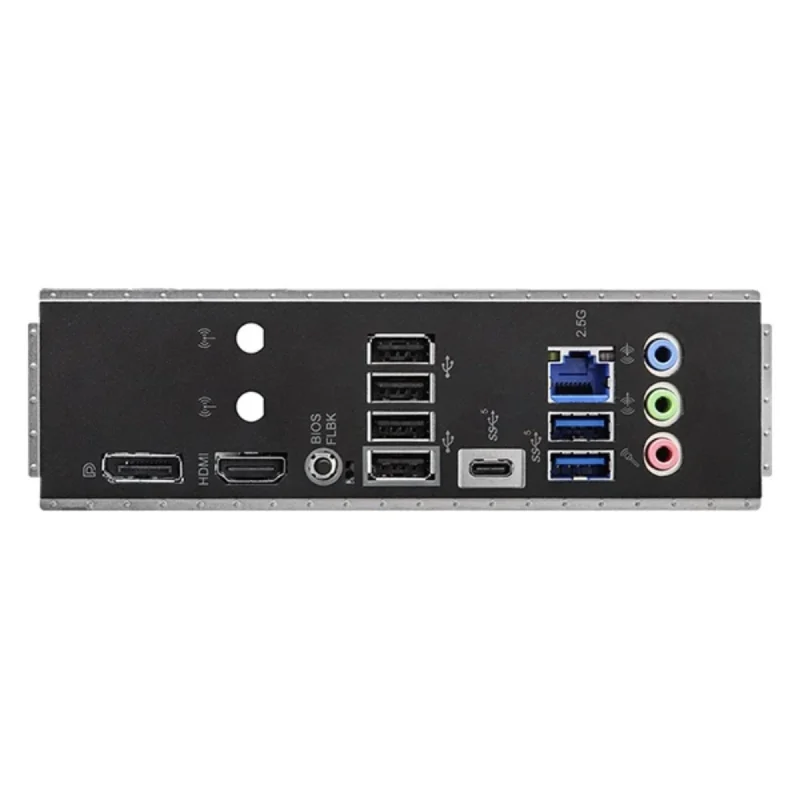

- Pre-Installed I/O Shield: Simplifies the installation process and provides a cleaner, more professional look for your build, while also protecting the vital rear ports from electrostatic discharge.
- ASRock Post Status Checker: An easy-to-use troubleshooting tool that provides a quick and simple way to diagnose CPU, DRAM, VGA, and boot device issues during startup, saving you time and frustration.
Quick Specs of the ASRock B650M-HDV/M.2
| Specification | Details |
|---|---|
| CPU Support | Supports AMD Ryzen 9000, 8000 & 7000 Series Processors |
| Socket | AM5 |
| Chipset | AMD B650 |
| Memory Support | 2 x DDR5 DIMMs | up to 128GB | DDR5 7200+(OC) |
| Storage Options | 2 x M.2 slots | 4 x SATA 6Gb/s ports |
| Display Ports | 1 x HDMI | 1 x DisplayPort |
| USB Ports | 1 x USB 3.2 Gen1 (Type-C) | 2 x USB 3.2 Gen1 (Type-A) | 4 x USB 2.0 (Type-A) |
| Expansion Slots | 2 x PCIe 4.0 x16 | 1 x PCIe 4.0 x1 |
| LAN | Dragon 2.5G LAN |
| Wireless | N/A (M.2 Key E slot available) |
| Audio | Realtek ALC897 Codec |
| Form Factor | Micro ATX (24.4 cm x 22.6 cm) |
Check out full specifications under the Specs tab.
Why Choose This Product?
The ASRock B650M-HDV/M.2 is perfect for builders who want next-generation performance in a compact and affordable package. It stands out by offering a PCIe Gen5 M.2 slot, ensuring your system is ready for the fastest SSDs available, eliminating loading screens and bottlenecks. Paired with high-speed DDR5 support and a solid 8+2+1 Dr.MOS power design, this Micro ATX board proves that you don’t need a large case to build a powerful, future-proof PC.
This motherboard is built for a smooth experience, both in-game and during assembly. The Dragon 2.5G LAN with its intelligent software prioritizes gaming traffic for a lag-free connection, while Nahimic Audio provides an immersive soundscape. User-friendly features like the pre-installed I/O shield, BIOS Flashback, and Post Status Checker take the hassle out of building and troubleshooting, making it a smart choice for any gamer or DIY enthusiast.
Experience next-generation speed in a compact form factor with the feature-packed ASRock B650M-HDV/M.2.
| Unique Feature | Superb Productivity
Rock-Solid Durability
Ultrafast Gaming
EZ Update
EZ Troubleshooter
|
| CPU |
*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Chipset | AMD B650 |
| Memory |
*Please refer to Memory Support List for more information. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU)
|
| Audio |
|
| LAN |
|
| Slots | CPU:
Chipset:
*Supports NVMe SSD as boot disks |
| Storage | CPU:
Chipset:
*Supports NVMe SSD as boot disks |
| RAID |
*Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB |
*All USB ports support ESD Protection |
| Connector |
*CPU_FAN1 supports the fan power up to 1A (12W). |
| Rear Panel I/O |
|
| Software and UEFI | Software
UEFI
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories |
|
| Form Factor |
|
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications |
|
About the Brand
ASRock is a globally recognized brand specializing in high-performance motherboards, industrial PCs, and mini PCs, with a strong focus on innovation and durability. Since its founding in 2002, ASRock has carved a reputation for delivering feature-rich platforms that cater to gamers, professionals, and system builders alike.
Known for pushing boundaries with advanced BIOS control, premium materials, and striking designs, ASRock motherboards are a favorite among enthusiasts seeking reliability and performance. The brand also offers compact and energy-efficient solutions ideal for modern minimalist builds.
