ASRock B850M-X WiFi DDR5 AM5 Micro ATX Motherboard
R2496,00
- CPU: Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
- Socket: AM5
- Chipset: AMD B850
- Memory: 2 x DIMM slots | Max. 128GB | DDR5 8200+(OC)
- Storage: 2 x M.2 slots | 4 x SATA 6Gb/s ports
- Expansion Slots: 2 x PCIe 4.0 x16
- Network: 1 x Ethernet 2.5 Gbps | Wi-Fi 6E (802.11axe) & Bluetooth v5.2
- Warranty: 3 Years
- Description
- SPECS
- Brand
- Reviews (0)
Description

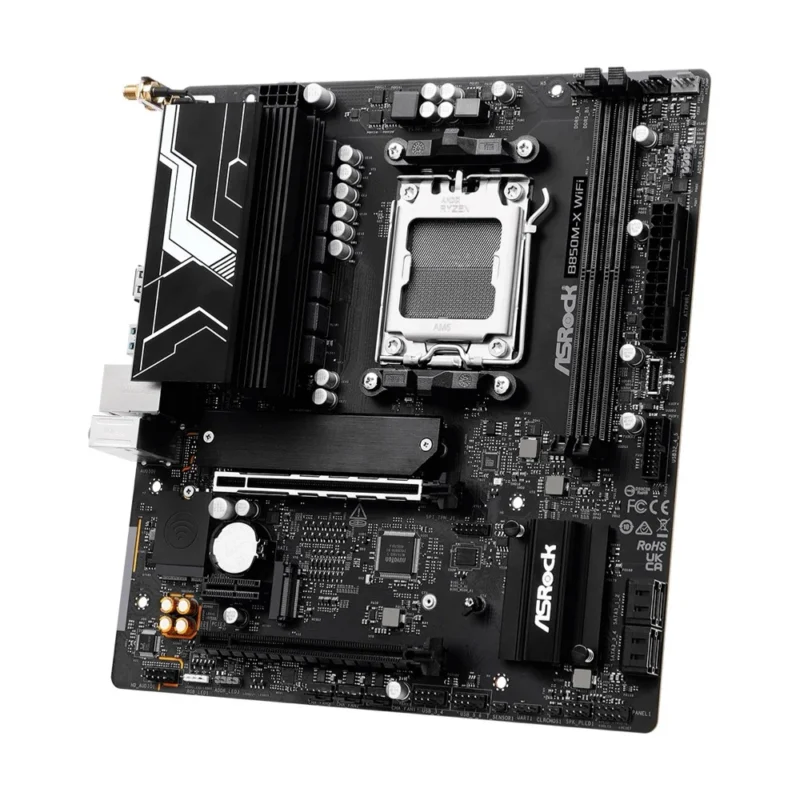

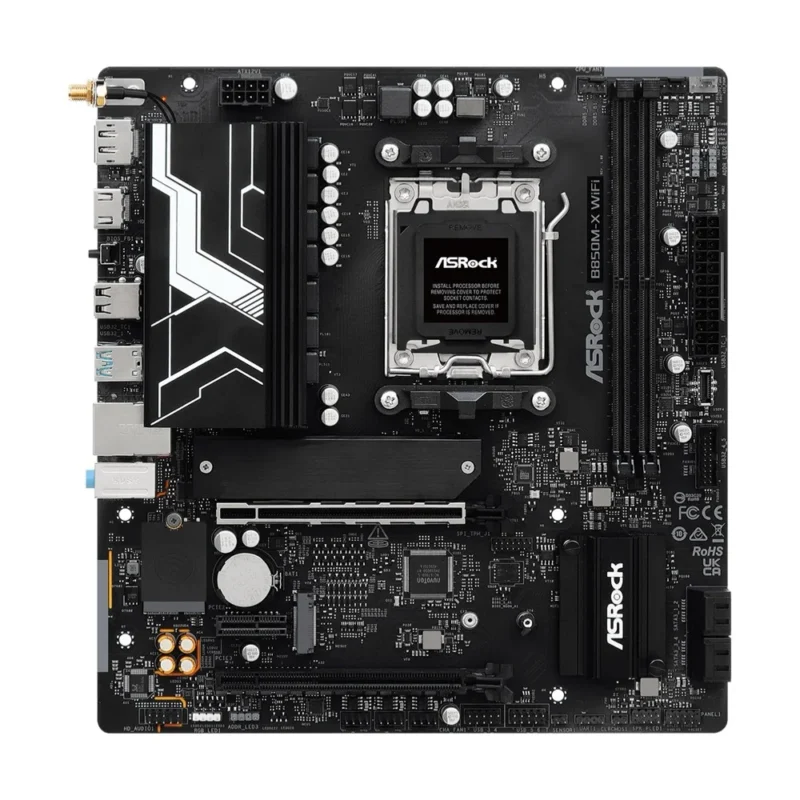

ASRock B850M-X WiFi: Compact Power, Future-Ready Speed
The ASRock B850M-X WiFi is a versatile Micro ATX motherboard designed to bring the power of the AMD AM5 platform to a compact form factor. Built to support the latest Ryzen 9000, 8000, and 7000 series processors, it balances performance with value. Featuring a PCIe Gen5 M.2 slot for blazing-fast storage [Image of NVMe SSD speed chart] and support for high-speed DDR5 memory, this board is an excellent foundation for a modern home office, gaming, or content creation PC.
Unique Features
- PCIe Gen5 Blazing M.2: Takes advantage of the latest storage technology with a Blazing M.2 slot capable of 128Gb/s transfer speeds, ensuring your OS and critical applications load instantaneously.
- 6+1+1 Power Phase Design: Features Dr.MOS power stages and sturdy components to deliver smooth and reliable power to the CPU, ensuring system stability even during demanding tasks.
- Ultrafast Connectivity: Equipped with Dragon 2.5G LAN and a Wi-Fi 6E module, offering a significant boost in networking speed and lower latency compared to standard connections.
- Nahimic Audio: Whether using headphones or speakers, Nahimic Audio offers the most engaging listening experience, vibrant and rich with details for music, movies, and conference calls.
- Dual Graphics Outputs: Includes both HDMI and DisplayPort connectors, providing flexibility for multi-monitor setups without the need for a discrete graphics card (when using an APU).
- EZ Trouble shooter: The ASRock Post Status Checker provides an easy way to identify the source of boot failures with LED indicators for CPU, DRAM, VGA, and BOOT status.
Quick Specs of the ASRock B850M-X WiFi
| Specification | Details |
|---|---|
| CPU Support | Supports AMD Ryzen 9000, 8000 and 7000 Series Processors |
| Socket | AM5 |
| Chipset | AMD B850 |
| Memory Support | 2 x DDR5 DIMMs | up to 128GB | DDR5 8200+(OC) |
| Storage Options | 2 x M.2 slots | 4 x SATA 6Gb/s ports |
| Display Ports | 1 x HDMI | 1 x DisplayPort |
| USB Ports | 1 x USB 3.2 Gen1 (Type-C) | 3 x USB 3.2 Gen1 (Type-A) | 2 x USB 2.0 (Type-A) |
| Expansion Slots | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 4.0 x1 |
| LAN | Dragon 2.5G LAN |
| Wireless | Wi-Fi 6E (802.11axe) | Bluetooth v5.2 |
| Audio | Realtek ALC897 Codec |
| Form Factor | Micro ATX (24.4 cm x 22.6 cm) |
Check out full specifications under the Specs tab.
Why Choose This Product?
The ASRock B850M-X WiFi is the ideal choice for budget-conscious builders who refuse to compromise on future-proof technology. By including a PCIe Gen5 M.2 slot, this motherboard ensures you are ready for the next generation of high-speed storage without the premium price tag of a flagship board. Its Micro ATX form factor allows for smaller, space-saving PC builds without sacrificing essential expandability.
This board offers a seamless user experience with intuitive features like the Auto Driver Installer and BIOS Flashback, making setup stress-free. With reliable 2.5G LAN and Wi-Fi 6E connectivity, it handles everything from high-bandwidth downloads to latency-sensitive gaming with ease. Whether for work or play, the B850M-X WiFi delivers a stable, high-speed platform that is built to last.
Step into the future of AM5 computing with the compact and capable ASRock B850M-X WiFi.
| Unique Feature | Superb Productivity
Rock-Solid Durability
Ultrafast Connectivity
EZ Update
EZ Troubleshooter
|
| CPU |
*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Chipset | AMD B850 |
| Memory |
*Please refer to Memory Support List on ASRock’s website for more information. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU)
|
| Audio |
|
| LAN |
|
| Wireless LAN |
*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU:
Chipset:
*PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. Supports NVMe SSD as boot disks |
| Storage | CPU:
Chipset:
*Supports NVMe SSD as boot disks. M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors. |
| RAID |
*Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB | CPU:
Chipset:
*All USB ports support ESD Protection |
| Connector |
*Supports in total up to 12V/3A, 36W LED Strip |
| Rear Panel I/O |
|
| Software and UEFI | Software
UEFI
*These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories |
|
| Form Factor |
|
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications |
|
About the Brand
ASRock is a globally recognized brand specializing in high-performance motherboards, industrial PCs, and mini PCs, with a strong focus on innovation and durability. Since its founding in 2002, ASRock has carved a reputation for delivering feature-rich platforms that cater to gamers, professionals, and system builders alike.
Known for pushing boundaries with advanced BIOS control, premium materials, and striking designs, ASRock motherboards are a favorite among enthusiasts seeking reliability and performance. The brand also offers compact and energy-efficient solutions ideal for modern minimalist builds.
