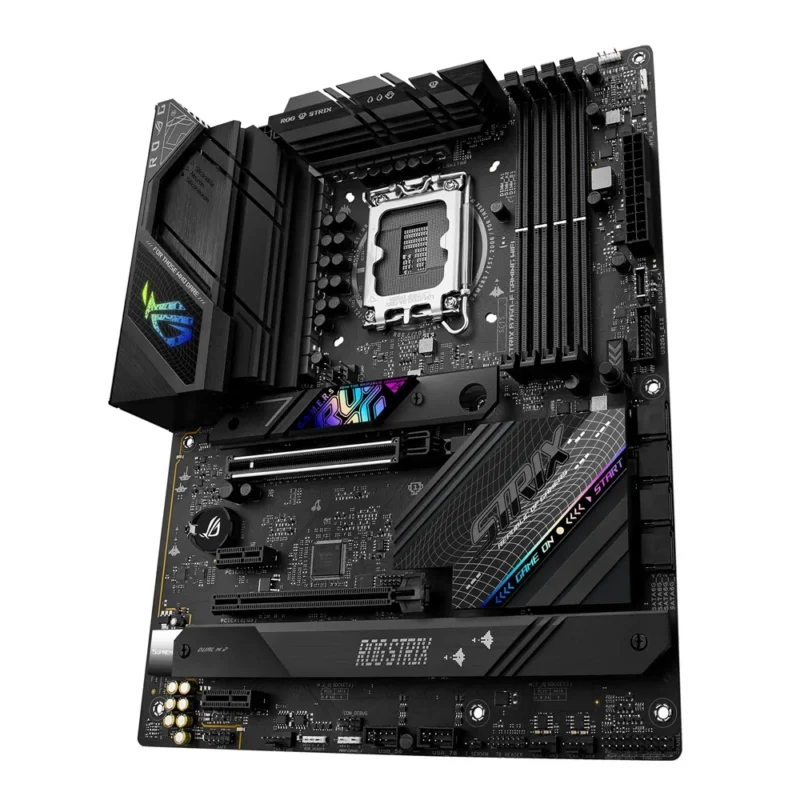

ASUS ROG STRIX B760-F GAMING WIFI DDR5 LGA1700 ATX Motherboard
R6070,00
- CPU: Supports 14th, 13th & 12th Gen Intel Core Processors
- Socket: Intel LGA1700
- Chipset: Intel B760
- Memory: 4 x DIMM slots | Max. 192GB | DDR5
- Storage: 3 x M.2 slots | 4 x SATA 6Gb/s ports
- Expansion Slots: 1 x PCIe 5.0 x16 slot | 1 x PCIe 3.0 x16 slot
- Network: 1 x Intel 2.5Gbps Ethernet | Wireless: Wi-Fi 6E & Bluetooth v5.3
- Warranty: 3 Years
Secure Payments via Bob Pay
Visa
Mastercard
Amex
Scan to Pay
PayShap
Banking Apps
Save 2.5% paying via EFT — you save R151.75 on this order
- Description
- SPECS
- Brand
- Reviews (0)
Description
ASUS ROG STRIX B760-F GAMING WIFI: Performance Ready for Intel Gaming
The ASUS ROG STRIX B760-F GAMING WIFI motherboard delivers exceptional performance and next-generation features for Intel 14th, 13th, and 12th Gen processors. Equipped with a robust power solution, optimized cooling, PCIe 5.0 support, and high-speed connectivity including Wi-Fi 6E, this board provides a formidable foundation for any high-performance gaming build.
Unique Features
- Robust Power Solution: 16 + 1 power stages with ProCool connectors, high-quality alloy chokes, and durable capacitors ensure stable power for multi-core processors.
- Optimized VRM Thermals: Thick heatsinks bridged to the power stages with high-conductivity thermal pads effectively manage heat during intense workloads.
- Ample M.2 Support: Three PCIe 4.0 M.2 slots, all equipped with heatsinks, provide fast storage options while maintaining optimal temperatures.
- Abundant Connectivity: Rear USB 3.2 Gen 2×2 Type-C port, multiple additional USB ports, a front-panel USB 3.2 Gen 2 Type-C connector, HDMI 2.1, and DisplayPort 1.4.
- High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard offer ultra-fast wireless and wired connections.
- Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation simplify setup and improve network performance and audio clarity.
- Immersive Gaming Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, DTS Sound Unbound, and Sonic Studio III deliver high-fidelity sound.
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one Aura RGB header and three addressable Gen 2 headers.
- DIY-Friendly Design: Features PCIe Slot Q-Release, M.2 Q-Latch, a pre-mounted I/O shield, BIOS FlashBack button, and Clear CMOS button.
Quick Specs of the ASUS ROG STRIX B760-F GAMING WIFI
| Specification | Details |
|---|---|
| CPU Support | Intel Socket LGA1700 for Intel Core 14th, 13th & 12th Gen, Pentium Gold and Celeron Processors |
| Socket | LGA1700 |
| Chipset | Intel B760 |
| Memory Support | 4 x DIMM, Max. 192GB, DDR5 7800+(OC) to 4800 Non-ECC, Un-buffered Memory |
| Storage Options | 3 x M.2 slots (PCIe 4.0) | 4 x SATA 6Gb/s ports |
| Display Ports | 1 x DisplayPort 1.4 | 1 x HDMI 2.1 port |
| USB Ports | 1 x USB 3.2 Gen 2×2 (Type-C) | 1 x USB 3.2 Gen 2 (Type-A) | 6 x USB 3.2 Gen 1 (Type-A) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot | 1 x PCIe 3.0 x16 slot | 2 x PCIe 3.0 x1 slots |
| LAN | 1 x Intel 2.5Gbps Ethernet |
| Wireless | Intel Wi-Fi 6E & Bluetooth v5.3 |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Form Factor | ATX |
Check out full specifications under the Specs tab.
Why Choose This Product?
TheASUS ROG STRIX B760-F GAMING WIFI is a compelling choice for gamers building an Intel-based system. It balances high-performance features like PCIe 5.0 support and DDR5 memory compatibility with robust power delivery and fast connectivity, including Wi-Fi 6E and 2.5 Gbps Ethernet.
| Model | ROG STRIX B760-F GAMING WIFI |
| CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to ASUS for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel B760 Chipset |
| Memory |
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to ASUSÂ for memory support list. |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to Intel for any updates. **Supports max. 8K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen)*
Intel B760 Chipset**
* Please check the PCIe bifurcation table on the support site ASUS. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen)*
Intel B760 Chipset**
4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel 2.5Gbps Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback” Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gbps Ethernet port 5 x Audio jacks * 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 xThunderbolt (USB4) header |
| Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Clear CMOS button – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Aura RGB header – Addressable Gen 2 headers |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS Sound Unbound ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Performance And Power Saving Utility – DIGI+ VRM – PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |
| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 2 x M.2 Rubber Package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Documentation 1 x User guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor |
