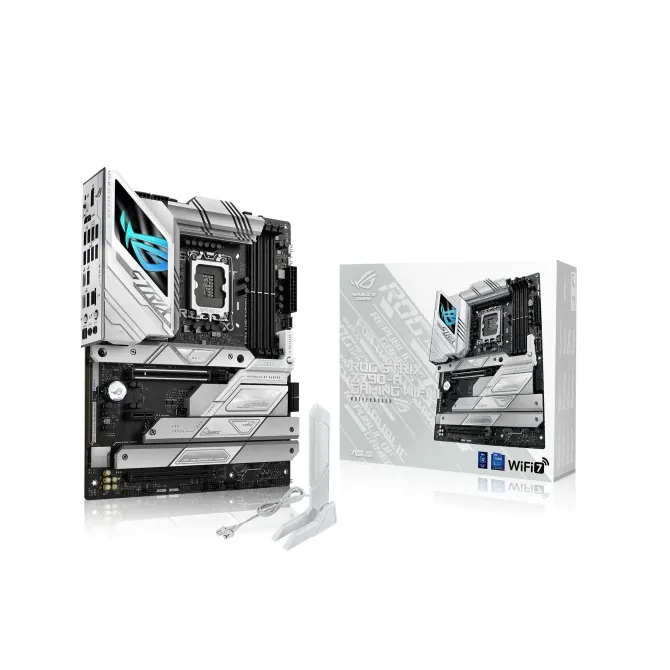

ASUS ROG STRIX Z790-A Gaming WIFI II DDR5 LGA1700 ATX Motherboard
Sold Out
- CPU: Supports 14th, 13th & 12th Gen Intel Core Processors
- Socket: Intel LGA1700
- Chipset: Intel Z790
- Memory: 4 x DIMM slots | Max. 192GB | DDR5
- Storage: 5 x M.2 slots | 4 x SATA 6Gb/s ports
- Expansion Slots: 1 x PCIe 5.0 x16 slot | 1 x PCIe 4.0 x16 slot
- Network: 1 x Intel 2.5Gbps Ethernet | Wireless: Wi-Fi 7 & Bluetooth v5.4
- Warranty: 3 Years
Currently Out of Stock – Get Notified
- Description
- SPECS
- Brand
- Reviews (0)
Description
ASUS ROG STRIX Z790-A GAMING WIFI II: Next-Gen Performance, Striking Style
The ASUS ROG STRIX Z790-A GAMING WIFI II delivers a vibrant and powerful platform for Intel 14th, 13th, and 12th Gen processors. Featuring a robust VRM, optimized cooling with stout silver heatsinks, PCIe 5.0 support, lightning-fast Wi-Fi 7 connectivity, and high-speed USB, this motherboard combines cutting-edge performance with a stunning aesthetic for discerning builders.
Unique Features
- Robust Power Solution: High-quality components ensure stable power delivery for the latest Intel multi-core processors.
- Optimized VRM Thermals: Massive silver heatsinks with integrated I/O cover and high-conductivity thermal pads keep the VRM cool under pressure.
- Ample M.2 Support: Five M.2 slots (PCIe 4.0) provide extensive high-speed storage options, all covered by heatsinks.
- Abundant Connectivity: Rear USB 20Gbps Type-C, multiple USB 10Gbps ports, front-panel USB 20Gbps Type-C with 30W PD Fast Charge & USB Wattage Watcher, HDMI 2.1, and DisplayPort 1.4.
- High-Performance Networking: On-board Intel Wi-Fi 7 with Q-Antenna and Intel 2.5 Gbps Ethernet with ASUS LANGuard offer top-tier wireless and wired speeds.
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, Two-Way AI Noise Cancelation, AEMP II, and DIMM Flex simplify setup and enhance performance.
- Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier and DTS Sound Unbound deliver high-fidelity gaming audio.
- Undeniably ROG Strix: Bold silver metallic heatsinks contrast against a dark PCB, with ROG-centric detailing and a unique transparent layer on the I/O shield emphasizing the customizable RGB logo.
- DIY-Friendly Design: Features PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-LED, BIOS FlashBack button, Clear CMOS button, and a pre-mounted I/O shield.
Quick Specs of the ASUS ROG STRIX Z790-A GAMING WIFI II
| Specification | Details |
|---|---|
| CPU Support | Intel Socket LGA1700 for Intel Core 14th, 13th & 12th Gen, Pentium Gold and Celeron Processors |
| Socket | LGA1700 |
| Chipset | Intel Z790 |
| Memory Support | 4 x DIMM, Max. 192GB, DDR5 8000+(OC) to 4800 Non-ECC, Un-buffered Memory |
| Storage Options | 5 x M.2 slots (PCIe 4.0) | 4 x SATA 6Gb/s ports |
| Display Ports | 1 x DisplayPort 1.4 | 1 x HDMI 2.1 port |
| USB Ports | 1 x USB 20Gbps (Type-C) | 3 x USB 10Gbps (2 x Type-A + 1 x Type-C) | 4 x USB 5Gbps (Type-A) | 4 x USB 2.0 (Type-A) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot | 1 x PCIe 4.0 x16 slot | 1 x PCIe 3.0 x1 slot |
| LAN | 1 x Intel 2.5Gbps Ethernet |
| Wireless | Intel Wi-Fi 7 & Bluetooth v5.4 |
| Audio | ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Form Factor | ATX |
Check out full specifications under the Specs tab.
Why Choose This Product?
The ROG Strix Z790-A Gaming WIFI II is an excellent choice for building a high-performance Intel-based system with a striking visual appeal. It offers next-generation features like PCIe 5.0 and Wi-Fi 7, extensive storage options, and intelligent ROG software utilities.
Experience the perfect blend of power, style, and cutting-edge technology for your gaming setup.
| Model | ROG STRIX Z790-A GAMING WIFI II |
| CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to ASUS for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z790 Chipset |
| Memory |
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ASUS. |
| Graphics | 1 x DisplayPort** 1 x HDMI port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution. |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen)*
Intel Z790 Chipset
* Please check the PCIe bifurcation table on the support site ASUS. |
| Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen)
Intel Z790 Chipset
4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel 2.5Gbps Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Intel Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB | Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (supports USB Type-C with up to with up to 30W PD Fast-charge ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | ROG SupremeFX 5.1 Surround Sound High Definition Audio CODEC ALC4080* – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front and Rear Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 110 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover **** The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. |
| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A+1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gbps Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin main power connector 2 x 8-pin +12V power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over voltage jumper 1 x Front panel audio header (F_AUDIO) 1 x 20-3 pin system panel header with Chassis intrude function 1 x Thermal sensor header 1 x Thunderbolt (USB4) header |
| Special Features | Extreme Engine Digi+ – 5K Black metallic capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-Antenna – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Aura RGB header – Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support – Support: up to 30W charging – Support: USB power delivery notification with power output wattage display – Output: 5V/9V max. 3A, 12V max 2.5A – Compatible with PD3.0 |
| Software Features | ROG Exclusive Software – ROG CPU-Z – DTS Sound Unbound ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – Power Saving – Sonic Studio – Two-Way AI Noise Cancelation AI Suite 3 – Easy Optimization with AI Overclocking – TPU – DIGI+ VRM – Turbo app – PC Cleaner MyASUS USB Wattage Watcher Intel Unison Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 2 x M.2 rubber packages 1 x M.2 backplate Rubber package Documentation 1 x Quick start guide |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | ATX Form Factor |
