The GIGABYTE B650 UD AX motherboard displayed next to its Ultra Durable retail packaging.

Full view of the GIGABYTE B650 UD AX showing connector and slot locations.

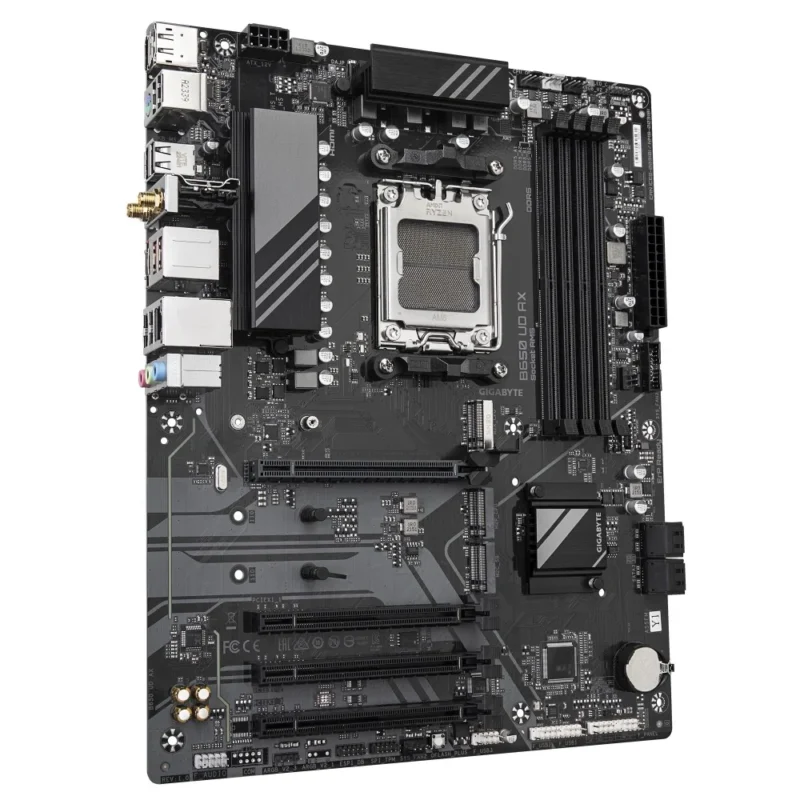

Angled view of the GIGABYTE B650 UD AX motherboard showing the heatsink design.

GIGABYTE B650 UD AX WIFI 6 DDR5 AM5 ATX Motherboard

Name: GIGABYTE B650 UD AX | AM5 DDR5 ATX Wi-Fi 6 Motherboard
Brand: GIGABYTE
SKU: GA-B650-UD-AX
Price: 2819.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R2819,00

CPU: Supports AMD Ryzen 7000 / 8000 / 9000 Series Processors
Socket: AM5
Chipset: AMD B650
Memory: 4 x DIMM slots | Max. 256GB | DDR5 8000(OC)
Storage: 3 x M.2 slots (1 x PCIe 5.0) | 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 4.0 x16 | 3 x PCIe 3.0 x16
Network: 1 x Realtek 1GbE LAN | Wi-Fi 6 (802.11ax) & Bluetooth 5.0
Warranty: 3 Years

Availability: 39 in stock SKU: GA-B650-UD-AX Category: AMD Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Apple Pay

Google Pay

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R70.48 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

GIGABYTE B650 UD AX: Ultra Durable Performance for AM5

The GIGABYTE B650 UD AX is built on the legendary Ultra Durable foundation, offering a rock-solid platform for the latest AMD Ryzen 7000, 8000, and 9000 series processors. Designed for users who prioritize longevity and stability, this ATX motherboard features a 6+2+2 phase digital VRM solution and high-quality components. With support for DDR5 memory overclocking up to 8000 MT/s and a PCIe 5.0 M.2 slot, it delivers essential next-gen performance for gaming and productivity.

Unique Features

6+2+2 Digital VRM Design: Equipped with low RDS(on) MOSFETs to ensure stable power delivery to the CPU, enhancing system performance and hardware scalability.
SuperSpeed Storage: Features one PCIe 5.0 M.2 connector for the fastest NVMe SSDs, plus two PCIe 4.0 M.2 connectors for ample high-speed storage.
PCIe EZ-Latch: A quick-release mechanism on the primary PCIe x16 slot allows for easy removal of graphics cards without struggling to reach the latch.
Smart Fan 6: Ensures optimal cooling with multiple temperature sensors and hybrid fan headers that support both PWM and DC fans, featuring Fan Stop technology for silence.
Q-Flash Plus: Allows you to update the BIOS easily using a USB flash drive without needing to install the CPU, memory, or graphics card.
Extended Connectivity: Includes rear USB 3.2 Gen 2 Type-A ports, a USB Type-C port, and integrated Wi-Fi 6 for fast and flexible connection options.

Quick Specs of the GIGABYTE B650 UD AX

Specification	Details
CPU Support	AMD Ryzen 7000/8000/9000 Series
Socket	AM5
Chipset	AMD B650
Memory Support	4 x DDR5 DIMMs \| Max. 256GB \| 8000(OC) MT/s
Storage Options	3 x M.2 (1 x Gen5, 2 x Gen4) \| 4 x SATA 6Gb/s
Display Ports	1 x HDMI 2.1 \| 1 x DisplayPort 1.4
USB Ports	1 x USB Type-C (Gen 1) \| 2 x USB 3.2 Gen 2 \| 6 x USB 2.0
Expansion Slots	1 x PCIe 4.0 x16 \| 3 x PCIe 3.0 x16 (run at x1)
LAN	Realtek 1GbE LAN
Wireless	Wi-Fi 6 (802.11ax) \| Bluetooth 5.0
Audio	Realtek ALC897 7.1-Channel HD Audio
Form Factor	ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The GIGABYTE B650 UD AX is the definitive choice for builders who value reliability and future-ready storage without paying for unnecessary extras. Its Ultra Durable design philosophy ensures long-term stability, while the inclusion of a PCIe 5.0 M.2 slot puts it ahead of many competitors in its class. With Wi-Fi 6 and 1GbE LAN, it keeps you connected effortlessly. Whether you are building a gaming PC or a reliable home office workstation, the EZ-Latch design and Q-Flash Plus make the assembly and maintenance process simple and stress-free.

Build a system that lasts. Upgrade to the GIGABYTE B650 UD AX today.

CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650 Chipset
Memory	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP)
Onboard Graphics	1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (DisplayPort 1.4) 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3) * Graphics specifications may vary depending on CPU support.
Audio	Realtek Audio CODEC (ALC897) High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication	Realtek RTL8851 WIFI 6 module WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ac wireless standard
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: Supports PCIe 4.0 x16 mode 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. * PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs (Supports PCIe 5.0 x4/x2 for Ryzen 7000/9000) 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs (Supports PCIe 4.0 x2) 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 (PCIe 4.0 x4/x2) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe and SATA storage devices
USB	CPU 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU + USB 2.0 Hub 4 x USB 2.0/1.1 ports on the back panel Chipset 2 x USB 3.2 Gen 1 ports available through the internal USB header 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset + USB 2.0 Hub 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header, 1 x CPU fan/water cooling pump header 2 x system fan headers, 1 x system fan/water cooling pump header 1 x addressable RGB Gen2 LED strip header, 1 x RGB LED strip header 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors 1 x USB Type-C header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x TPM header, 1 x Q-Flash Plus button, 1 x Clear CMOS jumper
Back Panel Connectors	1 x DisplayPort, 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x USB Type-C port (USB 3.2 Gen 1) 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Form Factor	ATX Form Factor
