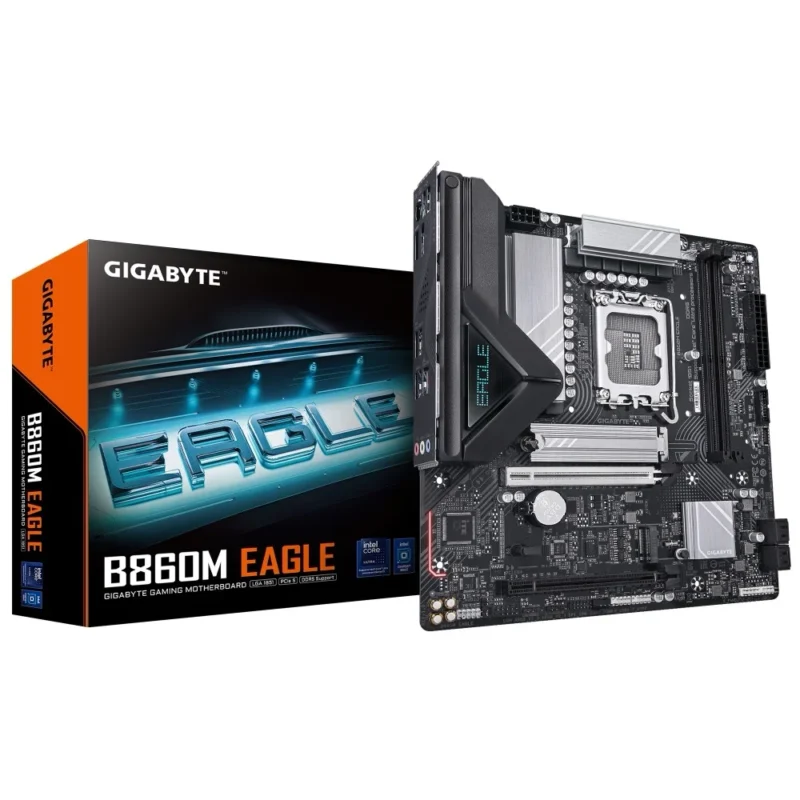

The GIGABYTE B860M EAGLE motherboard displayed next to its Ultra Durable retail box.

Full layout of the GIGABYTE B860M EAGLE showing connector locations and slots.

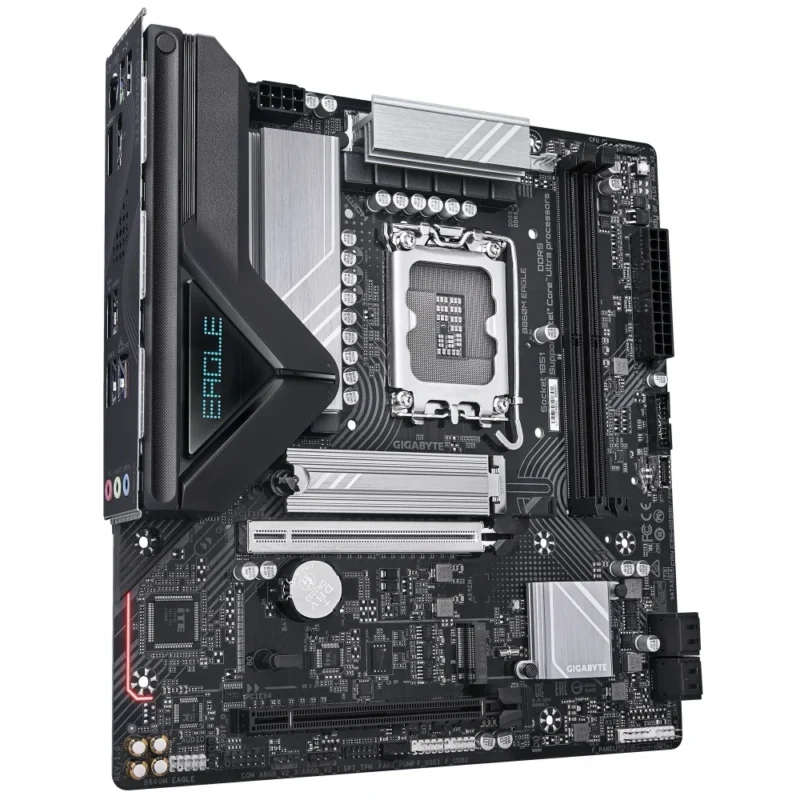

Angled view of the GIGABYTE B860M EAGLE motherboard showing the sleek digital VRM design.

Rear I/O panel of the GIGABYTE B860M EAGLE featuring HDMI and DisplayPort 2.1.

GIGABYTE B860M EAGLE DDR5 LGA1851 Micro ATX Motherboard

Name: GIGABYTE B860M EAGLE | LGA1851 PCIe 5.0 Motherboard
Brand: GIGABYTE
SKU: GA-B860M-EAGLE
Price: 2716.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R2716,00

CPU: Supports Intel Core Ultra Processors (Series 2)
Socket: LGA1851
Chipset: Intel B860 Express
Memory: 2 x DIMM slots | Max. 128GB | DDR5 9066(O.C)
Storage: 2 x M.2 slots (1 x PCIe 5.0) | 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 5.0 x16
Network: 1 x Realtek 2.5GbE LAN
Warranty: 3 Years

Availability: 2 in stock SKU: GA-B860M-EAGLE Category: Intel Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R67.90 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

GIGABYTE B860M EAGLE: Steady Power for Core Ultra

The GIGABYTE B860M EAGLE is a robust Micro ATX motherboard designed for the latest Intel Core Ultra Processors (LGA1851). It focuses on essential performance and durability, featuring a 6+1+2 digital VRM design to ensure steady power delivery. With exclusive D5 Bionic Corsa technology, this board unlocks infinite memory performance, supporting DDR5 overclocking speeds up to 9066+ MT/s.

Unique Features

D5 Bionic Corsa: AI-driven PCB design and HyperTune BIOS technology that optimizes signal integrity, allowing for DDR5 memory speeds of 9066 MT/s and beyond.
PCIe 5.0 Ready: Equipped with a PCIe 5.0 x16 slot for next-gen graphics cards and a PCIe 5.0 M.2 connector for the fastest NVMe SSDs.
EZ-Latch Designs: Features M.2 EZ-Latch Click and Plus mechanisms, enabling screwless installation of M.2 SSDs and heatsinks for a hassle-free build.
Comprehensive Thermal: Includes M.2 Thermal Guard and epic VRM heatsinks with a 4X massive cooling surface to maintain system stability under load.
AI Snatch Engine: Advanced AI overclocking models (coming soon) to automatically tune performance for peak efficiency.
Ultra Durable Construction: Reinforced PCIe UD Slot and solid pin power connectors provide superior strength and longevity.

Quick Specs of the GIGABYTE B860M EAGLE

Specification	Details
CPU Support	Intel Core Ultra Processors (Series 2)
Socket	LGA1851
Chipset	Intel B860 Express
Memory Support	2 x DDR5 DIMMs \| Max. 128GB \| 9066(O.C) MT/s
Storage Options	2 x M.2 (1 x Gen5, 1 x Gen4) \| 4 x SATA 6Gb/s
Display Ports	1 x HDMI 2.1 \| 1 x DisplayPort 2.1
USB Ports	3 x USB 3.2 Gen 1 \| 3 x USB 2.0
Expansion Slots	1 x PCIe 5.0 x16 \| 1 x PCIe 4.0 x16 (x4 mode)
LAN	Realtek 2.5GbE LAN
Audio	Realtek HD Audio Codec
Form Factor	Micro ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The GIGABYTE B860M EAGLE is the smart choice for users who want next-generation features without paying for unnecessary bells and whistles. It democratizes PCIe 5.0 storage and graphics performance, making it accessible for mainstream builds. The board’s focus on “Steady Power” via its digital VRM design ensures your Intel Core Ultra processor runs smoothly, while the 2.5GbE LAN provides fast networking for gaming and streaming. With the user-friendly EZ-Latch system, building your PC is faster and easier than ever.

Soar to new heights of performance. Build with the GIGABYTE B860M EAGLE today.

CPU	LGA1851 socket: Support for Intel Core Ultra Processors * L3 cache varies with CPU(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset	Intel B860 Express Chipset
Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version.(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.* Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) 4 x SATA 6Gb/s connectors * RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header, 1 x CPU fan/water cooling pump header 1 x system fan header, 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header 1 x USB Type-C header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x HDMI port 1 x DisplayPort 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver is only supported on Windows 11.
Form Factor	Micro ATX Form Factor
