The GIGABYTE H810M H motherboard displayed next to its Ultra Durable retail box.

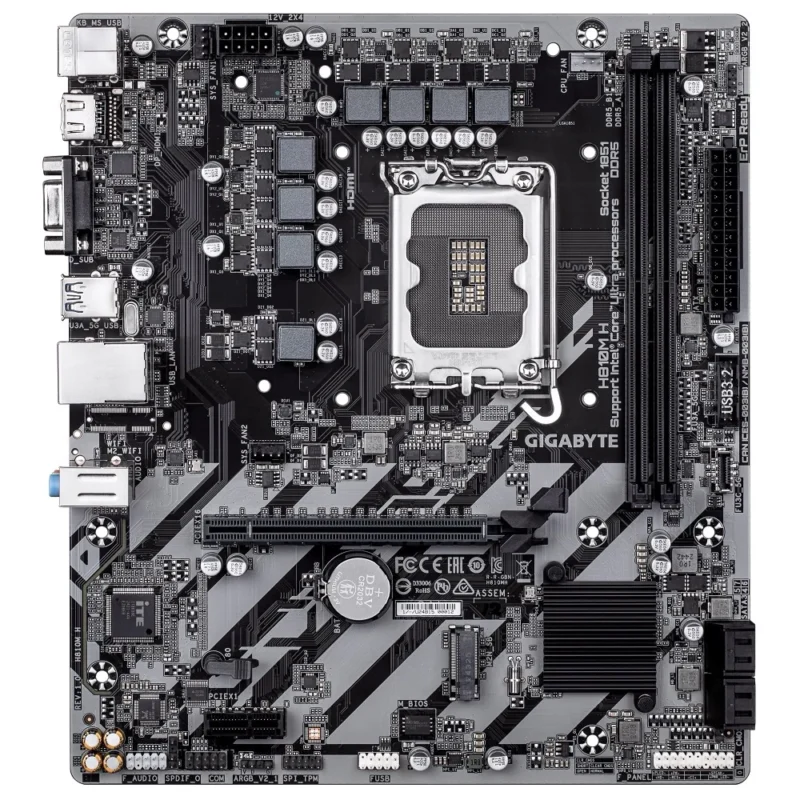

Full layout of the GIGABYTE H810M H showing connector and slot locations.

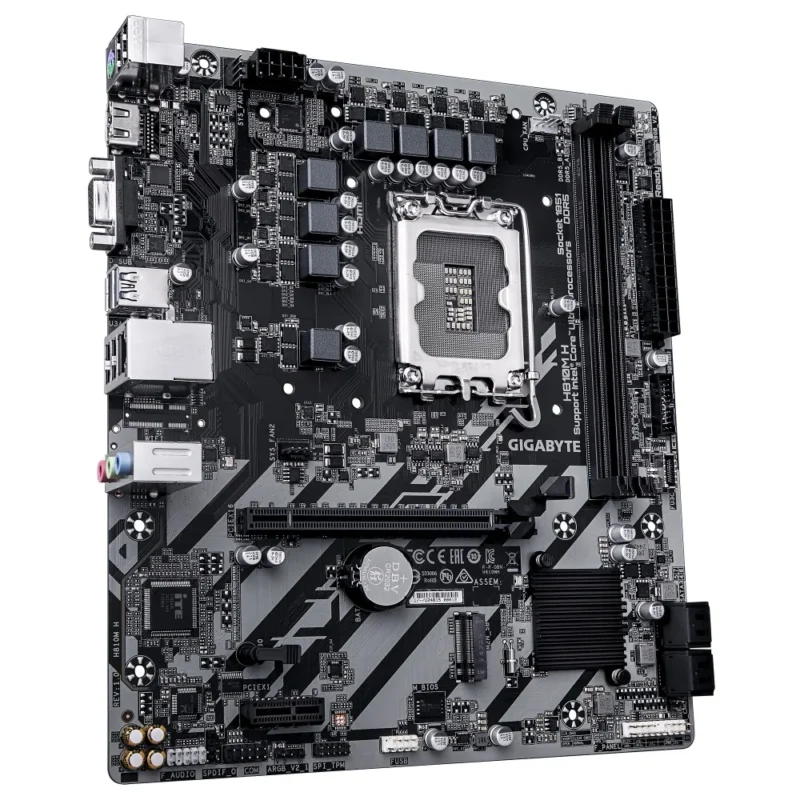

Angled view of the GIGABYTE H810M H motherboard showing the compact layout.

Rear I/O panel of the GIGABYTE H810M H featuring HDMI and D-Sub ports.

GIGABYTE H810M H DDR5 LGA1851 Micro ATX Motherboard

Name: GIGABYTE H810M H | LGA1851 DDR5 Micro ATX Motherboard
Brand: GIGABYTE
SKU: GA-H810M-H
Price: 1816.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R1816,00

CPU: Supports Intel Core Ultra Processors (Series 2)
Socket: LGA1851
Chipset: Intel H810 Express
Memory: 2 x DIMM slots | Max. 128GB | DDR5 6400 MT/s
Storage: 1 x M.2 slot (PCIe 4.0) | 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 4.0 x16
Network: 1 x Realtek GbE LAN
Warranty: 3 Years

Availability: 59 in stock SKU: GA-H810M-H Category: Intel Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Apple Pay

Google Pay

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R45.40 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

GIGABYTE H810M H: Reliable Foundation for Core Ultra

The GIGABYTE H810M H is a cost-effective Micro ATX motherboard built to support the latest Intel Core Ultra Processors (Series 2). It offers a solid entry point into the LGA1851 platform with DDR5 memory support up to 6400 MT/s. Designed for daily computing and business tasks, it features a Hybrid 4+1+2 phase VRM design and Ultra Durable components to ensure stability and longevity.

Unique Features

PCIe 4.0 Design: Features a PCIe 4.0 x16 slot and a PCIe 4.0 x4 M.2 connector, providing sufficient bandwidth for modern graphics cards and fast NVMe storage.
Hybrid VRM Design: Utilizes a 4+1+2 phase power design to deliver consistent power to the CPU, ensuring reliable performance for standard workloads.
Legacy Support: Includes a D-Sub (VGA) port alongside HDMI 2.1, offering versatile display options for older monitors and multi-screen setups.
Smart Fan 6: Keeps the system cool and quiet with multiple temperature sensors, hybrid fan headers, and Fan Stop technology that pauses fans during low loads.
EZ-Latch: A user-friendly mechanism on the PCIe x16 slot allows for quick and easy removal of graphics cards without fumbling with latches.
GbE LAN: Features a bandwidth management application to improve network latency and maintain low ping times in crowded environments.

Quick Specs of the GIGABYTE H810M H

Specification	Details
CPU Support	Intel Core Ultra Processors (Series 2)
Socket	LGA1851
Chipset	Intel H810 Express
Memory Support	2 x DDR5 DIMMs \| Max. 128GB \| 6400 MT/s
Storage Options	1 x M.2 (PCIe 4.0) \| 4 x SATA 6Gb/s
Display Ports	1 x HDMI 2.1 \| 1 x D-Sub
USB Ports	1 x USB 3.2 Gen 1 (Rear) \| 5 x USB 2.0 (Rear)
Expansion Slots	1 x PCIe 4.0 x16 \| 1 x PCIe 3.0 x1
LAN	Realtek GbE LAN
Audio	Realtek HD Audio Codec
Form Factor	Micro ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The GIGABYTE H810M H is the perfect choice for budget-conscious builders who need a dependable motherboard for the latest Intel architecture. It provides essential features like PCIe 4.0 connectivity and DDR5 support without the premium price tag. The inclusion of a D-Sub port makes it particularly suitable for office environments with legacy hardware. With GIGABYTE’s signature Ultra Durable build quality and user-friendly features like Q-Flash and EZ-Latch, this motherboard delivers value and reliability you can trust.

Build a reliable system for less. Choose the GIGABYTE H810M H today.

CPU	LGA1851 socket: Support for Intel Core Ultra Processors * L3 cache varies with CPU(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset	Intel H810 Express Chipset
Memory	Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.* Support for S/PDIF Out
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface	Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB	Chipset 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header) 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x HDMI port* 1 x D-Sub port 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Smart Backup * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver is only supported on Windows 11.
Form Factor	Micro ATX Form Factor
