The GIGABYTE H810M K motherboard displayed next to its Ultra Durable retail box.

Rear I/O panel of the GIGABYTE H810M K featuring HDMI and DisplayPort.

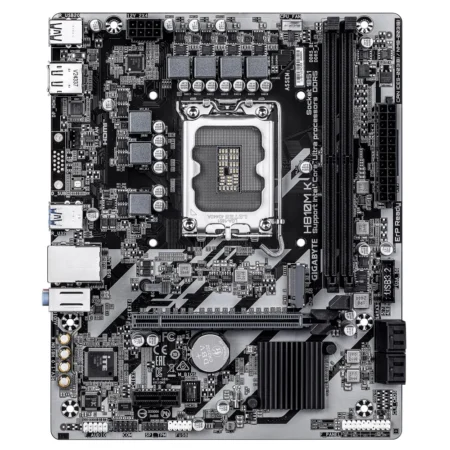

Full layout of the GIGABYTE H810M K showing connector and slot locations.

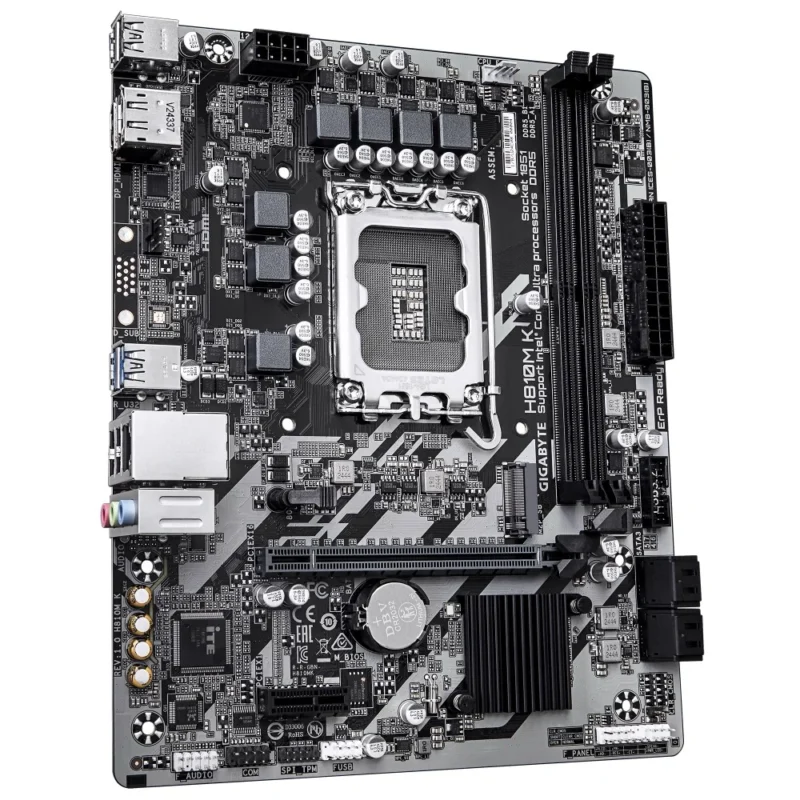

Angled view of the GIGABYTE H810M K motherboard showing the simple and compact design.

GIGABYTE H810M K DDR5 LGA1851 Micro ATX Motherboard

Name: GIGABYTE H810M K | LGA1851 DDR5 Micro ATX Motherboard
Brand: GIGABYTE
SKU: GA-H810M-K
Price: 1816.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R1816,00

CPU: Supports Intel Core Ultra Processors (Series 2)
Socket: LGA1851
Chipset: Intel H810 Express
Memory: 2 x DIMM slots | Max. 128GB | DDR5 6400 MT/s
Storage: 1 x M.2 slot (PCIe 4.0) | 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 4.0 x16
Network: 1 x Realtek GbE LAN
Warranty: 3 Years

Availability: 11 in stock SKU: GA-H810M-K Category: Intel Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Apple Pay

Google Pay

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R45.40 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

GIGABYTE H810M K: Essential Core Ultra Performance

The GIGABYTE H810M K is a streamlined Micro ATX motherboard designed to support the latest Intel Core Ultra Processors (Series 2) on the LGA1851 platform. Ideal for budget-conscious builds or office systems, it features a Hybrid 3+1+2 phases VRM solution and support for DDR5 memory up to 6400 MT/s. With PCIe 4.0 connectivity for graphics and storage, along with GbE LAN, it provides a stable and reliable foundation for daily computing tasks.

Unique Features

PCIe 4.0 Design: Equipped with a PCIe 4.0 x16 slot and a PCIe 4.0 x4 M.2 connector, delivering sufficient bandwidth for modern graphics cards and fast NVMe storage.
Hybrid VRM Design: A 3+1+2 phase power design with premium chokes and capacitors ensures stable power delivery to the CPU for reliable operation.
EZ-Latch: Features a PCIe EZ-Latch mechanism on the x16 slot, allowing for quick and effortless removal of the graphics card.
Smart Fan 6: Provides cooling precision with multiple temperature sensors, hybrid fan headers, and Fan Stop technology to maintain a quiet system under low loads.
Future Connectivity: Includes modern display outputs like HDMI 2.1 and DisplayPort 2.1, supporting high-resolution monitors for productivity.
GbE LAN: Features a bandwidth management application to improve network latency and maintain low ping times in crowded network environments.

Quick Specs of the GIGABYTE H810M K

Specification	Details
CPU Support	Intel Core Ultra Processors (Series 2)
Socket	LGA1851
Chipset	Intel H810 Express
Memory Support	2 x DDR5 DIMMs \| Max. 128GB \| 6400 MT/s
Storage Options	1 x M.2 (PCIe 4.0) \| 4 x SATA 6Gb/s
Display Ports	1 x HDMI 2.1 \| 1 x DisplayPort 2.1
USB Ports	2 x USB 3.2 Gen 1 \| 4 x USB 2.0 (Rear Panel Only)
Expansion Slots	1 x PCIe 4.0 x16 \| 1 x PCIe 3.0 x1
LAN	Realtek GbE LAN
Audio	Realtek HD Audio Codec
Form Factor	Micro ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The GIGABYTE H810M K is the perfect choice for users upgrading to the LGA1851 platform who want reliable performance without paying for unnecessary extras. It brings the speed of DDR5 memory and PCIe 4.0 to the entry-level segment, ensuring your system remains responsive and efficient. With GIGABYTE’s signature Ultra Durable build quality, solid pin power connectors, and user-friendly features like Q-Flash and EZ-Latch, this motherboard offers excellent value and longevity for any basic build.

Get reliable performance for your daily tasks. Build with the GIGABYTE H810M K today.

CPU	LGA1851 socket: Support for Intel Core Ultra Processors * L3 cache varies with CPU(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset	Intel H810 Express Chipset
Memory	Support for DDR5 6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz * Support for DisplayPort 2.1 version. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface	Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB	Chipset 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors	1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Smart Backup * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel NPU driver is only supported on Windows 11.
Form Factor	Micro ATX Form Factor
