Unboxing the GIGABYTE TRX50 AERO D, showing the E-ATX board inside the box.

Full overview of the GIGABYTE TRX50 AERO D showing connector and slot locations.

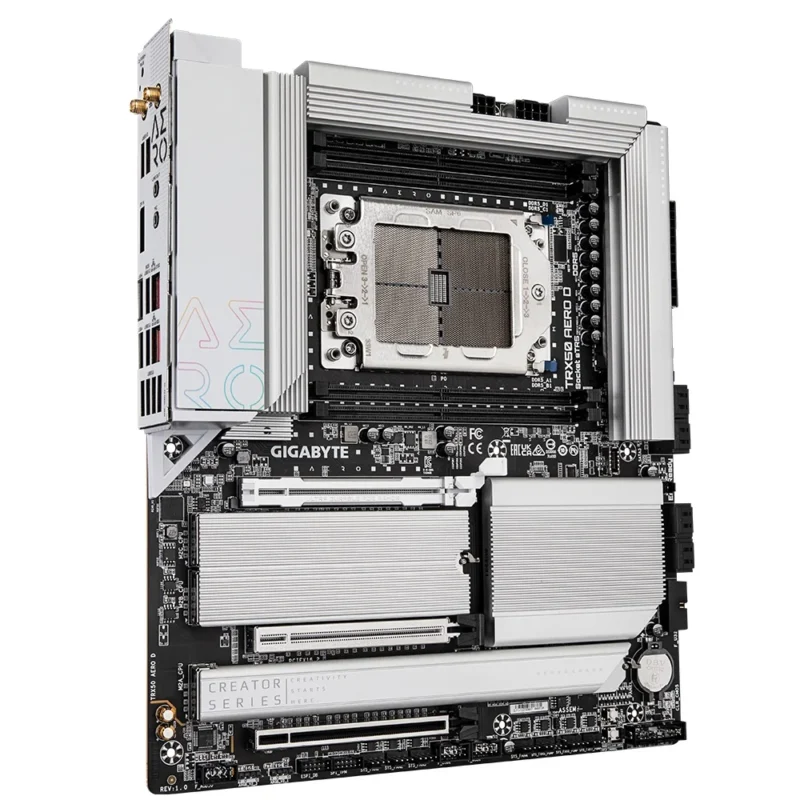

Angled view of the GIGABYTE TRX50 AERO D E-ATX motherboard showing the massive heatsinks.

Rear I/O panel of the GIGABYTE TRX50 AERO D featuring dual USB4 and 10GbE LAN ports.

GIGABYTE TRX50 AERO D Motherboard

Name: GIGABYTE TRX50 AERO D | sTR5 E-ATX Workstation Motherboard
Brand: GIGABYTE
SKU: GA-TRX50-AERO-D
Price: 12778.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R12778,00

CPU: Supports AMD Ryzen Threadripper PRO 7000/9000 WX-Series & Threadripper 7000/9000 Series Processors
Socket: sTR5
Chipset: AMD TRX50
Memory: 4 x DIMM slots | Max. 1TB | DDR5 8000(O.C.) ECC RDIMM
Storage: 4 x M.2 slots (3 x PCIe 5.0) | 8 x SATA 6Gb/s ports
Expansion Slots: 2 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16
Network: 1 x 10GbE LAN & 1 x 2.5GbE LAN | Wi-Fi 7 (802.11be) & Bluetooth 5.3
Warranty: 3 Years

Availability: 6 in stock SKU: GA-TRX50-AERO-D Category: AMD Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Apple Pay

Google Pay

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R319.45 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

GIGABYTE TRX50 AERO D: The Ultimate AI & Content Creation Platform

The GIGABYTE TRX50 AERO D is a high-end E-ATX motherboard engineered for AI professionals, content creators, and scientific computing. Built to unleash the power of AMD Ryzen Threadripper 7000 and 9000 series processors, it features a massive 16+8+4 phase digital VRM design to ensure stability under heavy computational workloads. With support for up to 1TB of DDR5 ECC memory and triple PCIe x16 slots for multi-GPU setups, it serves as a powerful workstation foundation.

Unique Features

Breakthrough Performance: Equipped with a 16+8+4 phase digital VRM solution using 108A Smart Power Stages to drive high-core-count Threadripper CPUs efficiently.
Next-Gen Connectivity: Features dual USB4 Type-C ports (40Gbps), 10GbE + 2.5GbE Dual LAN, and Wi-Fi 7 for blazing-fast data transfer and networking.
Ultimate Scalability: Offers three PCIe x16 slots (two PCIe 5.0) for multi-GPU configurations and four M.2 slots (three PCIe 5.0) for ultra-fast storage arrays.
Advanced Thermal Design: Includes VRM Thermal Armor Advanced with a multi-cut heatsink design and M.2 Thermal Guards to prevent throttling during intensive tasks.
DIY-Friendly: Features EZ-Latch Click and EZ-Latch Plus for screwless installation of M.2 SSDs and heatsinks, plus a PCIe EZ-Latch for easy graphics card removal.
PCIe UD Slot X: A seamless, one-piece stainless-steel PCIe 5.0 x16 slot design screwed onto a backplate, providing 10X load-bearing strength for heavy GPUs.

Quick Specs of the GIGABYTE TRX50 AERO D

Specification	Details
CPU Support	Ryzen Threadripper 7000/9000 (PRO & Non-PRO)
Socket	sTR5
Chipset	AMD TRX50
Memory Support	4 x DDR5 R-DIMMs \| Max. 1TB \| 8000(O.C.) MT/s
Storage Options	3 x M.2 (Gen 5) \| 1 x M.2 (Gen 4) \| 8 x SATA
Display Ports	1 x DisplayPort In \| USB4 Type-C Output
USB Ports	1 x USB4 (DisplayPort) \| 1 x USB-C (20Gbps) \| 4 x USB 3.2 Gen 2 \| 4 x USB 3.2 Gen 1
Expansion Slots	2 x PCIe 5.0 x16 \| 1 x PCIe 4.0 x16
LAN	1 x 10GbE (Marvell) \| 1 x 2.5GbE (Realtek)
Wireless	Wi-Fi 7 (QCNCM865) \| Bluetooth 5.3
Audio	Realtek ALC4080 (Rear) + ALC897 (Front)
Form Factor	E-ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The GIGABYTE TRX50 AERO D is the definitive choice for professionals building a high-end desktop (HEDT) or workstation. Its ability to handle up to 96-core processors and 1TB of ECC memory makes it a powerhouse for simulation, rendering, and AI training. The inclusion of dual USB4 ports and 10GbE LAN ensures that your connectivity is as fast as your compute performance.

Designed with durability in mind, it features the ultra-robust PCIe UD Slot X and comprehensive thermal solutions to maintain peak performance over long periods. Whether you are a content creator needing massive storage bandwidth or an engineer running complex simulations, the TRX50 AERO D delivers the reliability and speed required for mission-critical tasks.

Build your ultimate workstation. Upgrade to the GIGABYTE TRX50 AERO D today.

CPU	AMD Socket sTR5, support for: AMD Ryzen Threadripper PRO 9000-WX/7000-WX Series & Threadripper 9000/7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.)
Chipset	AMD TRX50
Memory	Support for DDR5 8000(O.C.) / … / 4800 / 4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)
Audio	Realtek ALC4080 CODEC (rear panel audio) – Support for DTS:X Ultra, High Definition Audio, 2-channel Realtek ALC897 CODEC (front panel audio)
LAN	Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless Communication	Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard * Wi-Fi 7 features require Windows 11 SV3 to function properly. No support for Windows 10.
Expansion Slots	Integrated in the CPU 2 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2) – Support PCIe 5.0 x16 mode 1 x PCI Express x16 slot (PCIEX16_3) – Supports PCIe 4.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface	CPU 1 x M.2 connector (M2C_CPU) – Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support 2 x M.2 connectors (M2A_CPU/M2B_CPU) – Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support 1 x M.2 connector (M2D_CPU) – Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support CPU+Chipset 8 x SATA 6Gb/s connectors * RAID 0, RAID 1, and RAID 10 support for NVMe and SATA storage devices.
USB	CPU 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+Intel JHL8540 USB4 controller 2 x USB4 USB Type-C ports on the back panel Chipset 1 x USB Type-C port with USB 3.2 Gen 2×2 support (internal header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports (internal header) Hubs 4 x USB 3.2 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports (internal headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors 1 x CPU fan header, 1 x CPU fan/water cooling pump header 4 x system fan headers, 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header 4 x M.2 Socket 3 connectors, 8 x SATA 6Gb/s connectors 1 x front panel header, 1 x front panel audio header 1 x USB Type-C header (USB 3.2 Gen 2×2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers 1 x noise detection header, 1 x TPM header 1 x power button, 1 x Clear CMOS button, 1 x reset button 2 x temperature sensor headers
Back Panel Connectors	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4 USB Type-C port (DisplayPort), 1 x USB4 USB Type-C port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan speed, Water cooling flow rate detection Fan fail warning, Fan speed control, Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	E-ATX Form Factor
