InWin A1 PLUS with 650W Gold PSU SFF (Mini-ITX) Black PC Case
R3996,00
- Case Type: SFF (Mini-ITX)
- Motherboard Support: Mini-ITX
- Max GPU Length: 320mm
- Side Panel: Tempered Glass
- Radiator Support: Rear: 120mm
- Max CPU Cooler Height: 160mm
- Included Fans: 2x Sirius Loop ASL120 Fans
- Included PSU: 650W 80 PLUS Gold
- Warranty: 2 Years (Case), 5 Years (PSU)
Secure Payments via Bob Pay
Visa
Mastercard
Amex
Scan to Pay
PayShap
Banking Apps
Save 2.5% paying via EFT — you save R99.90 on this order
- Description
- SPECS
- Brand
- Reviews (0)
Description

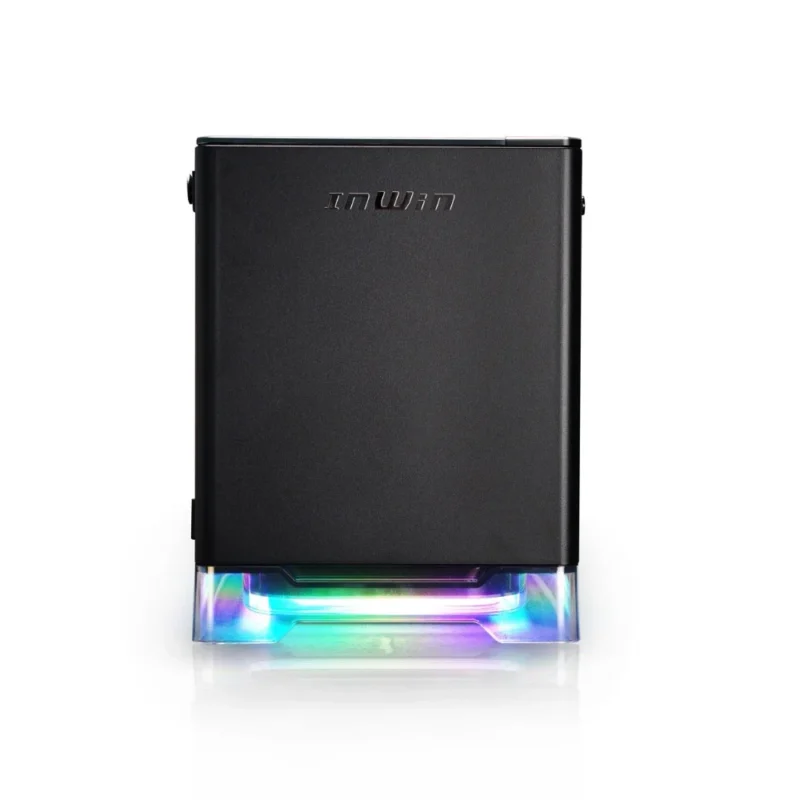

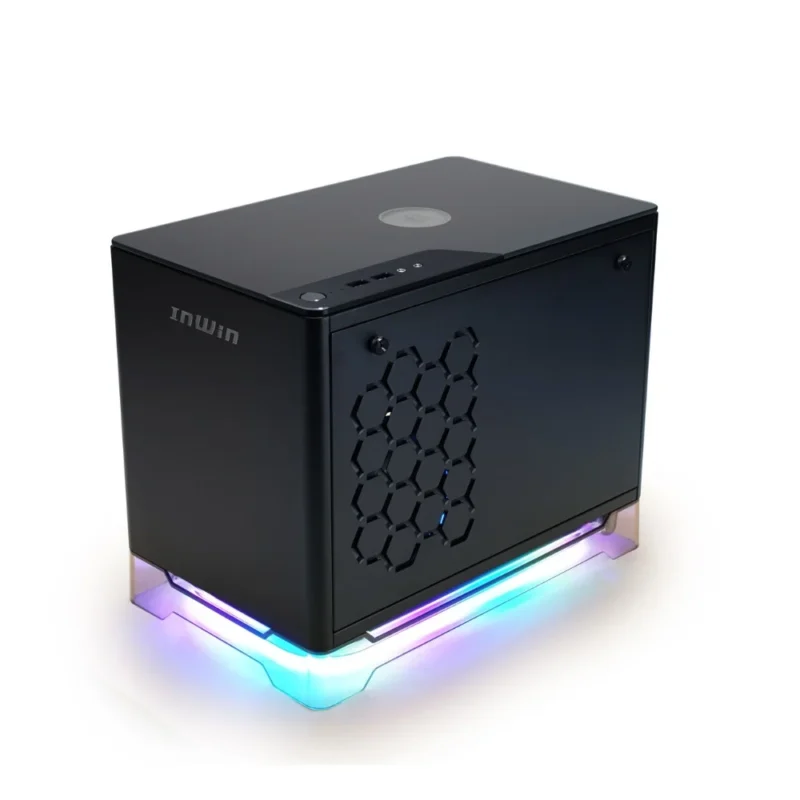

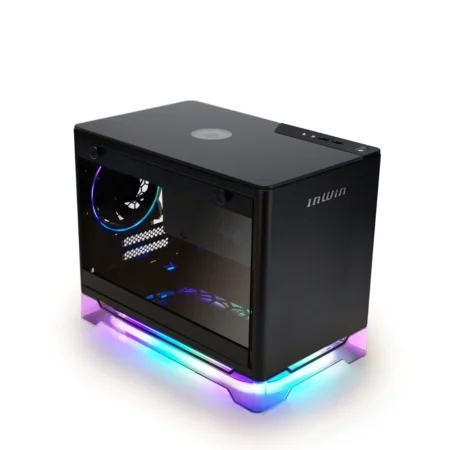

InWin A1 PLUS SFF Mini ITX Case: Squaring Infinite Possibilities
The InWin A1 PLUS squares infinite possibilities in a compact Mini-ITX form factor. This case comes packed with features, including a pre-installed 650W 80 PLUS Gold power supply, an integrated wireless charging panel, and two stunning Sirius Loop ARGB fans. The tinted transparent stand creates a floating illusion, with addressable RGB lights piercing through for an awesome lighting experience. It’s the ultimate feature-packed SFF case.
Unique Features
- 650W 80 PLUS Gold PSU Included: A high-quality, pre-installed InWin 650W power supply with an 80 PLUS Gold efficiency rating provides stable and reliable power for your build.
- Top Panel Wireless Charger: Features a convenient top wireless charging station compatible with WPC Qi 1.2, delivering 10W of power to your enabled mobile devices and peripherals.
- Two Sirius Loop Fans Included: Comes with two complementary Sirius Loop ASL120 ARGB fans, featuring a matte black structure and dual radiant addressable RGB loops for stunning visuals.
- Expression Through Lights: The tinted transparent stand allows the addressable RGB lighting to shine through, creating a unique floating illusion and a spectacular lighting experience.
Quick Specs: InWin A1 PLUS
| Specification | Details |
|---|---|
| Case Type | SFF (Mini-ITX) |
| Motherboard Compatibility | Mini-ITX |
| Clearances | GPU: 320mm | CPU: 160mm |
| Fan Capacity | Up to 4x 120mm fans |
| Radiator Capacity | Rear: 120mm |
| Pre-Installed Fans | 2x Sirius Loop ASL120 Fans |
| Pre-Installed PSU | 650W 80 PLUS Gold |
| Drive Bays | 2x 2.5″ |
| Front I/O Ports | 2x USB 3.0 | HD Audio |
| Warranty | 2 Years (Case), 5 Years (PSU) |
Check out full specifications under the Specs tab.
Why Choose the InWin A1 PLUS?
The A1 PLUS is for the builder who wants a premium, hassle-free SFF experience. The inclusion of a high-quality 650W Gold PSU, two ARGB fans, and a wireless Qi charger provides incredible value and simplifies the building process. It’s the perfect all-in-one package for a powerful and stylish Mini-ITX build.
Get a huge head start on your SFF build!
| I. Overview & Compatibility | |
|---|---|
| Model Name | InWin A1 PLUS |
| Model Number | IW-A1PLUS-BLACK |
| Case Type | SFF (Mini-ITX) |
| Color | Black |
| Case Materials |
|
| Motherboard Support |
|
| Side Panel | Tempered Glass |
| Included PSU Details | InWin 650W 80 PLUS Gold |
| Warranty | 2 Years (Case), 5 Years (PSU), 1 Year (Wireless Charger) |
| II. Dimensions & Clearances | |
| Case Dimensions (H x W x D) | 273mm x 224mm x 357mm |
| Weight | 7.1 kg |
| Maximum GPU Length | 320mm |
| Maximum CPU Cooler Height | 160mm |
| III. Cooling System | |
| Fan Support |
|
| Radiator Support |
|
| Fans Included | 2x Sirius Loop ASL120 Fans |
| IV. Expansion & I/O | |
| Expansion Slots | 2 |
| 2.5″ Drive Bays | 2 |
| Front Panel I/O |
|
| V. Other Features | |
| Built-in Lighting | Yes (Addressable RGB Fans & Stand) |
| Design Features |
|
| VI. Overview | |
| Model Name | IW-GD650PS |
| Form Factor | ATX |
| Power Output (Wattage) | 650W |
| 80 PLUS Certification | Gold |
| Modularity | Non-Modular |
| Fan Size(s) | 120mm |
| Fan Bearing Technology | Not Specified |
| Mean Time Between Failures (MTBF) | > 100,000 hours |
| Color | Not Specified |
| Warranty Period | 5 Years |
| VII. Power Specifications | |
| Input Voltage Range | 100-240Vac (Input Current: 10A, Frequency: 47-63Hz) |
| +3.3V Output (Amps) | 20A (Combined Max Output with +5V: 100W) |
| +5V Output (Amps) | 20A (Combined Max Output with +3.3V: 100W) |
| +12V Output (Amps & Rail Configuration if specified) | 54A (Max Output: 648W) |
| -12V Output (Amps) | 0.3A (Max Output: 3.6W) |
| +5Vsb Output (Amps) | 2.5A (Max Output: 12.5W) |
| Power Protection Features |
|
| VIII. Connectors | |
| Motherboard Power Connector (20+4 pin) | 1 |
| CPU Power Connector (4+4 pin) | 1 |
| PCIe Graphics Connector (6+2 pin) | 2 |
| High-Power PCIe Graphics Connector (12VHPWR) | 0 |
| SATA Power Connectors | 3 |
| Peripheral Power Connectors (Molex) | 0 |
| Floppy Drive Connector (FDD 4-pin) | 0 |
| IX. Other Notable Features | |
| Other Notable Features |
|
About the Brand
InWin stands in a class of its own, treating the PC chassis not just as a container, but as a piece of art. For builders who believe aesthetics are as crucial as performance, InWin delivers breathtaking and innovative designs that consistently challenge convention and inspire the PC building community.
Famous for their masterful use of premium materials like tempered glass and brushed aluminum, InWin cases are engineered for both stunning visual impact and functional excellence. From sleek, minimalist towers to audacious, open-air frames, each chassis is a canvas for your ultimate build. At OnlyGaming, we stock InWin products for the discerning gamer who wants to construct a PC that truly stands out from the crowd. Browse our collection and find the perfect chassis to turn your gaming rig into a showpiece.
