The GIGABYTE B760M E motherboard displayed next to its retail packaging.

Full layout of the GIGABYTE B760M E showing internal connectors and slots.

Angled view of the GIGABYTE B760M E motherboard showing the DDR5 DIMM slots and CPU socket.

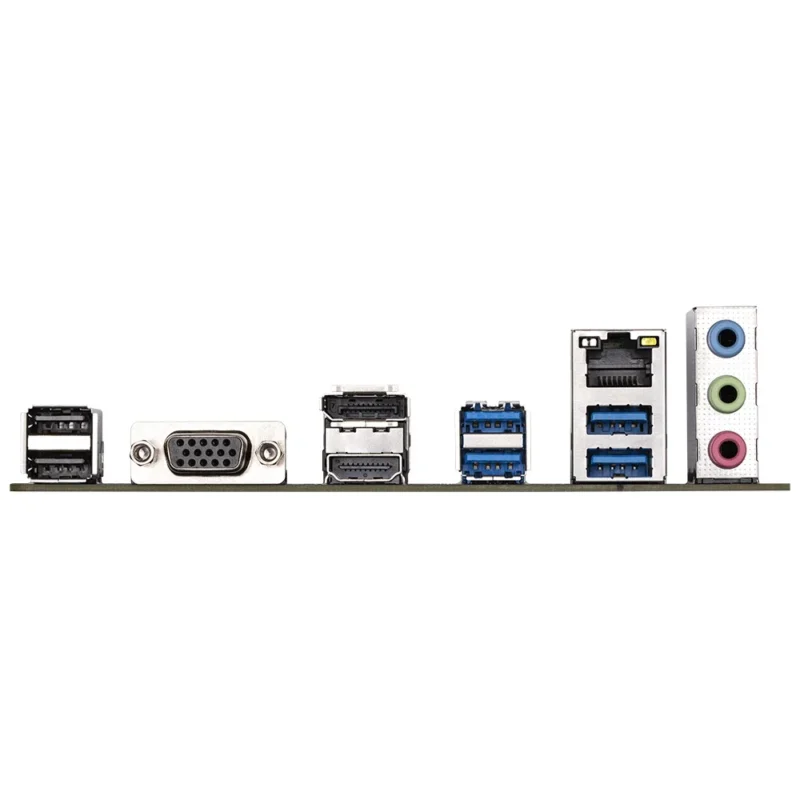

Rear I/O panel of the GIGABYTE B760M E featuring HDMI, DisplayPort, and D-Sub ports.

GIGABYTE B760M E DDR5 LGA1700 Micro ATX Motherboard

Name: GIGABYTE B760M E | DDR5 LGA1700 Micro ATX Motherboard
Brand: GIGABYTE
SKU: GA-B760M-E
Price: 2064.00 ZAR
Availability: InStock

0 out of 5

( There are no reviews yet. )

R2064,00

CPU: Supports Intel Core 14th/ 13th/ 12th Gen, Pentium Gold and Celeron Processors
Socket: LGA1700
Chipset: Intel B760 Express
Memory: 2 x DIMM slots | Max. 128GB | DDR5 7200(O.C.)
Storage: 2 x M.2 slots (PCIe 4.0) | 4 x SATA 6Gb/s ports
Expansion Slots: 1 x PCIe 4.0 x16
Network: 1 x Realtek GbE LAN
Warranty: 3 Years

Availability: 7 in stock SKU: GA-B760M-E Category: Intel Motherboards

Secure Payments via Bob Pay

Visa

Mastercard

Amex

Scan to Pay

PayShap

Banking Apps

Save 2.5% paying via EFT — you save R51.60 on this order

Add to wishlist

Description
SPECS
Brand
Reviews (0)

Description

GIGABYTE B760M E: Efficient DDR5 Performance for Daily Computing

The GIGABYTE B760M E is a value-packed Micro ATX motherboard designed to bring the latest technologies to budget-conscious builds. Supporting 14th, 13th, and 12th Gen Intel Core processors, it makes the leap to high-speed DDR5 memory accessible with overclocking support up to 7200 MT/s. With a reliable 6+1+1 phase hybrid digital VRM design and PCIe 4.0 connectivity, it offers a stable and responsive foundation for home, office, or entry-level gaming systems.

Unique Features

Hybrid Digital VRM: Features a 6+1+1 phase design with Low RDS(on) MOSFETs and premium chokes to ensure efficient power delivery and reduced energy loss.
PCIe 4.0 Design: Ready for modern graphics cards and storage with a PCIe 4.0 x16 slot and dual PCIe 4.0 x4 M.2 connectors for fast NVMe SSDs.
DDR5 Memory Upgrade: Includes BIOS profiles to easily overclock native and XMP 3.0 DDR5 memory modules to higher frequencies without complex manual tuning.
PCIe EZ-Latch: A convenient quick-release mechanism on the PCIe x16 slot that makes removing graphics cards simple and safe.
Smart Fan 6: Ensures your system stays cool and quiet with multiple temperature sensors, hybrid fan headers, and Fan Stop technology that halts fans during low loads.
Legacy & Modern Connectivity: Provides a versatile range of display outputs including HDMI, DisplayPort, and D-Sub (VGA), perfect for multi-monitor setups using older or newer screens.

Quick Specs of the GIGABYTE B760M E

Specification	Details
CPU Support	Intel Core 14th/13th/12th Gen
Socket	LGA1700
Chipset	Intel B760 Express
Memory Support	2 x DDR5 DIMMs \| Max. 128GB \| 7200(O.C.) MT/s
Storage Options	2 x M.2 (PCIe 4.0) \| 4 x SATA 6Gb/s
Display Ports	1 x HDMI 2.1 \| 1 x DisplayPort 1.2 \| 1 x D-Sub
USB Ports	4 x USB 3.2 Gen 1 \| 2 x USB 2.0
Expansion Slots	1 x PCIe 4.0 x16 \| 1 x PCIe 3.0 x1
LAN	Realtek GbE LAN
Audio	Realtek Audio CODEC 7.1-Channel
Form Factor	Micro ATX

Check out full specifications under the Specs tab.

Why Choose This Product?

The GIGABYTE B760M E is the ideal entry point for users upgrading to the LGA1700 platform who want the benefits of DDR5 memory without overspending. Its robust feature set, including GbE LAN with bandwidth management and high-end audio capacitors, ensures a quality experience for daily tasks and multimedia. Whether you are reviving an older setup or building a new office PC, the inclusion of a D-Sub port alongside HDMI and DisplayPort offers unmatched display flexibility.

Get reliable performance for less. Build with the GIGABYTE B760M E today.

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors * L3 cache varies with CPU(Please refer “CPU Support List” for more information.)
Chipset	Intel B760 Express Chipset
Memory	Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same time
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) 4 x SATA 6Gb/s connectors * RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices.
USB	Chipset 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor
